NBCC Group C Residential Building Standards: Fire-Resistance and Area Requirements
Navigating the National Building Code of Canada (NBCC) is critical for ensuring the safety and compliance of residential developments. At empcontracting.ca Inc. your construction contractor in London, Ontario, we specialize in interpreting these complex regulations to deliver high-quality, code-compliant housing solutions.
Understanding Group C Residential Classifications
Buildings classified under Group C (Residential) that are up to 3 storeys in height must follow specific construction standards regarding fire-resistance ratings and building area limitations. These regulations apply to both combustible and noncombustible construction types, used singly or in combination.

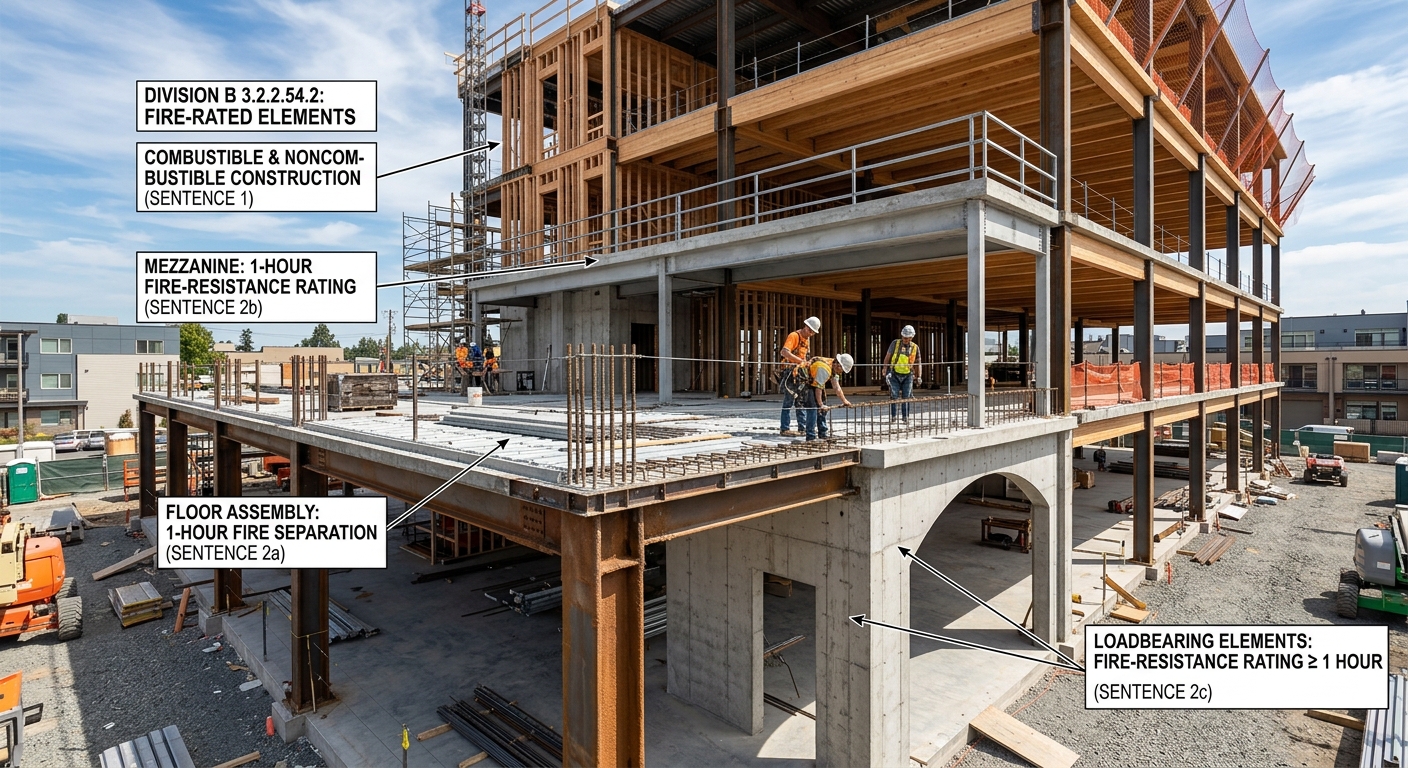

Fire-Resistance Ratings for Key Structural Elements
According to Division B 3.2.2.54 and 3.2.2.53, structural integrity during a fire event is paramount. The following requirements generally apply:
- Floor Assemblies: Must serve as fire separations with a fire-resistance rating of no less than 1 hour.
- Mezzanines: Must maintain a fire-resistance rating of at least 1 hour.
- Loadbearing Structures: All loadbearing walls, columns, and arches must have a fire-resistance rating equal to or greater than the assembly they support.
- Roof Assemblies: For buildings under the 'Increased Area' provisions (3.2.2.53), roof assemblies require a minimum 1-hour fire-resistance rating.
Maximum Building Area Limits (Table 3.2.2.53)
The permissible building area for Group C structures is contingent upon the number of storeys and the building's proximity to public streets. For a 3-storey residential building, the area limits are as follows:
- Facing 1 Street: 800 m²
- Facing 2 Streets: 1,000 m²
- Facing 3 Streets: 1,200 m²
Special Exemptions for Dwelling Units
The NBCC provides specific nuances for individual dwelling units within a larger structure. If a dwelling unit occupies more than one storey, the internal floor assemblies (including those over basements) require a 1-hour fire-resistance rating but do not need to function as fire separations. Furthermore, if there is no dwelling unit located above another, the fire-resistance rating for floor assemblies entirely within that unit is waived.
Expert Construction Services in London, Ontario
Compliance with the National Building Code of Canada Volume 1 ensures the longevity and safety of your investment. Whether you are developing multi-family units or townhomes, empcontracting.ca Inc. your construction contractor in London, Ontario provides the technical expertise needed to manage fire-safety requirements and building area constraints efficiently.
