NBC Group C Residential Construction Standards: 3-Storey Building Requirements
Navigating the National Building Code of Canada (NBC) is essential for any multi-residential development. To ensure your project meets all regulatory safety and structural standards, partner with empcontracting.ca Inc. your construction contractor in London, Ontario.

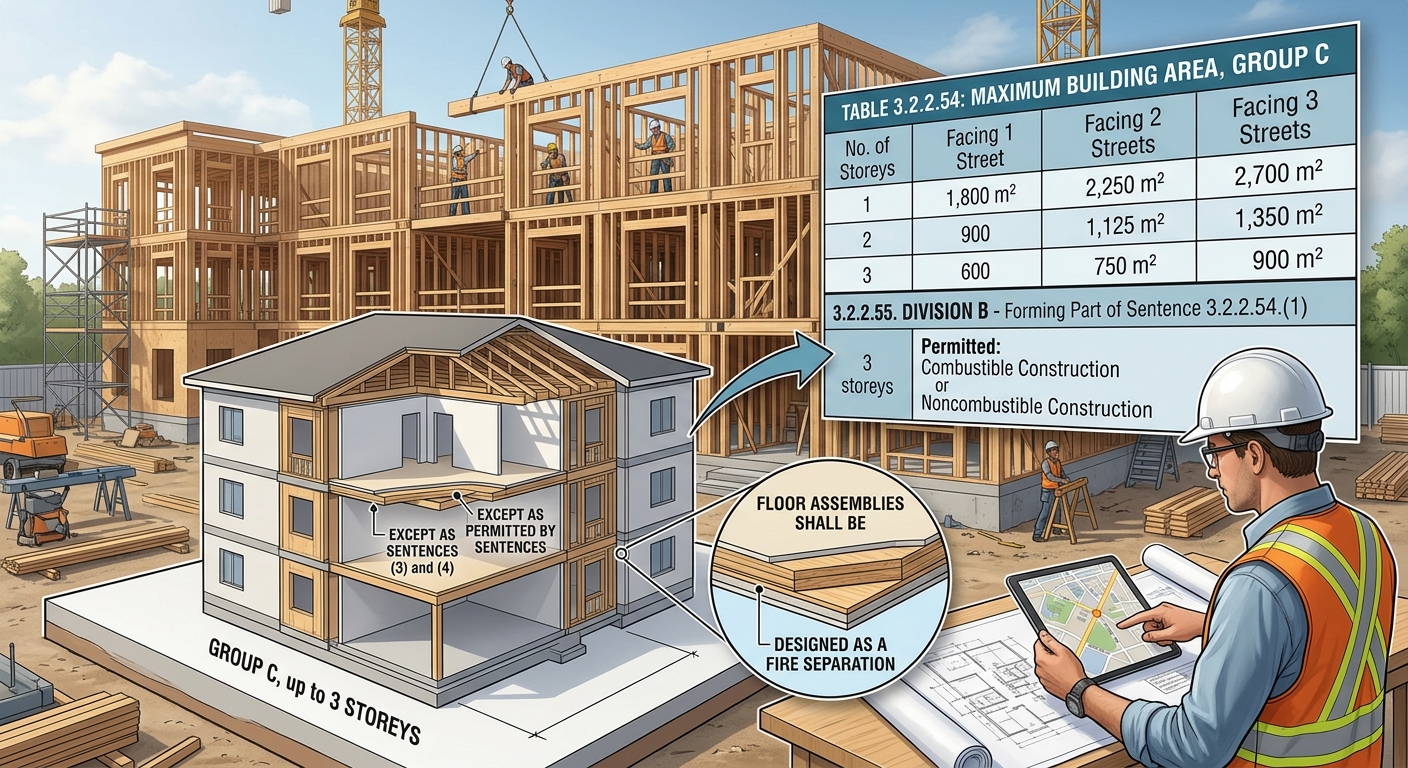

National Building Code Requirements for Group C Buildings up to 3 Storeys
According to the standards set out in Division B, specifically sections 3.2.2.54 and 3.2.2.55, residential buildings (Group C) up to three storeys are subject to specific area limits and fire-resistance ratings. These regulations are designed to protect occupants and structural integrity based on the building's size and street accessibility.
Maximum Building Area for Non-Sprinklered Residential Units
For non-sprinklered Group C buildings, the maximum allowable area per floor is strictly regulated. For a 3-storey building, the area limits are as follows:
- Facing 1 Street: 600 m²
- Facing 2 Streets: 750 m²
- Facing 3 Streets: 900 m²
Building Standards for Sprinklered Group C Occupancies (NBC 3.2.2.55)
When a building is equipped with an automatic sprinkler system, the National Building Code permits significantly larger building areas. For a 3-storey sprinklered residential building, the maximum area is increased to 1,800 m². If you are planning a large-scale residential project, empcontracting.ca Inc. your construction contractor in London, Ontario can help you optimize your site plan to meet these requirements.
Fire-Resistance Ratings and Construction Materials
The NBC permits these buildings to be of combustible construction, noncombustible construction, or a combination of both, provided they meet these fire-resistance criteria:
- Floor Assemblies: Must be fire separations with a fire-resistance rating of not less than 45 minutes.
- Mezzanines: If combustible, they must maintain a 45-minute fire-resistance rating.
- Loadbearing Members: All loadbearing walls, columns, and arches must have a fire-resistance rating equal to the assembly they support.
Specific Exemptions for Dwelling Units
The code offers specific provisions for dwelling units that span multiple storeys. For instance, within a single dwelling unit, floor assemblies over basements or between floors must have a 45-minute rating but do not necessarily need to be constructed as fire separations. In cases where no dwelling unit is situated above another, the fire-resistance rating for internal floor assemblies may be waived entirely.
For professional implementation of these complex building codes, trust empcontracting.ca Inc. your construction contractor in London, Ontario to deliver compliant, high-quality residential construction.
