NBC 3.2.3.1 Guide: Exterior Wall Fire Safety and Limiting Distances in London, Ontario
Navigating the complexities of the National Building Code of Canada (NBC) is vital for any commercial or residential project. For those looking to build or renovate, understanding Division B 3.2.3.1. is essential for fire safety compliance. At empcontracting.ca Inc. your construction contractor in London, Ontario, we ensure your exterior wall assemblies and unprotected openings meet every provincial and national safety standard.
Understanding the Exposing Building Face and Fire Ratings

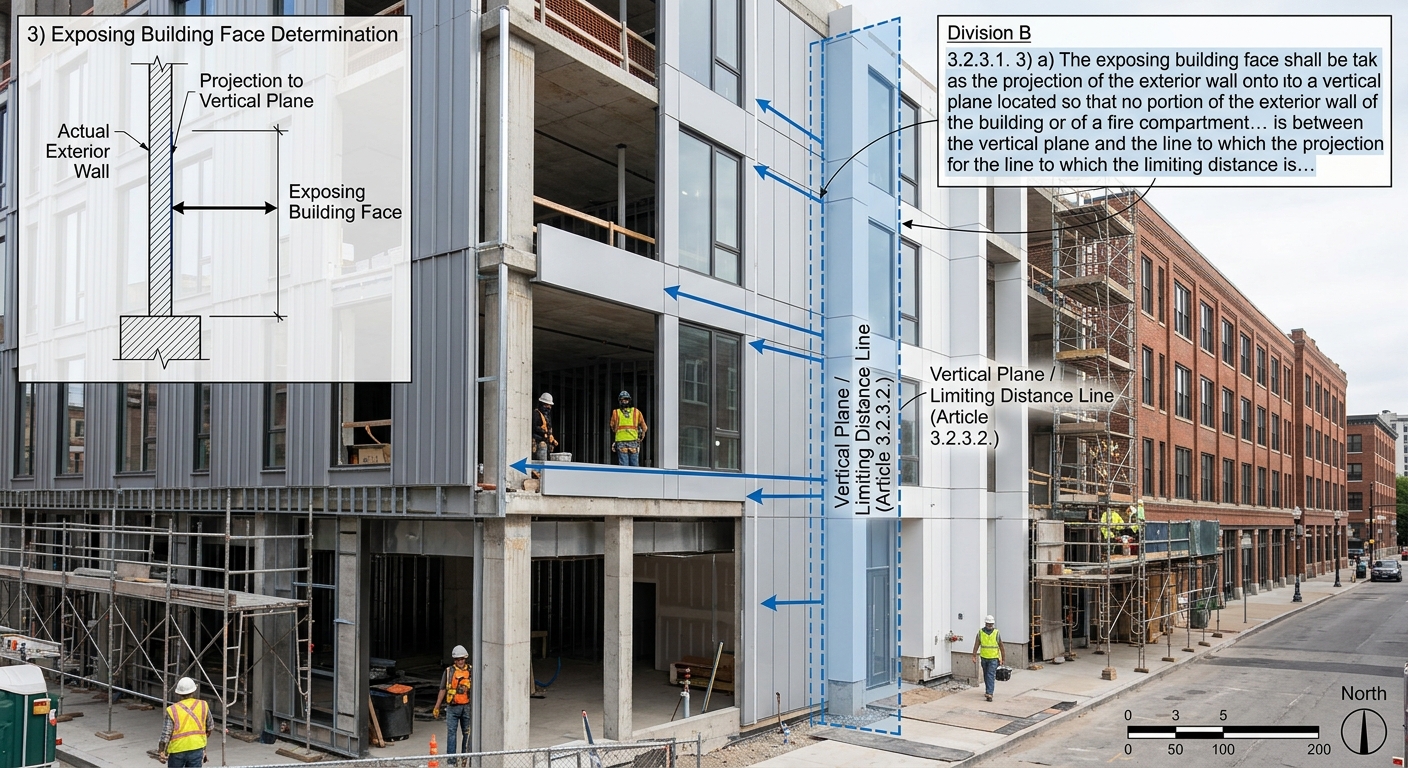

According to NBC 3.2.3.1., the type of construction, cladding, and fire-resistance rating of an exterior wall are determined by the exposing building face. This is calculated as a projection of the exterior wall onto a vertical plane. No part of the wall or fire compartment should exist between this plane and the limiting distance line, ensuring a clear safety buffer against fire spread between adjacent properties.
Calculating Unprotected Openings and Limiting Distances
An "unprotected opening" refers to windows or doors that do not have a specific fire-resistance rating. The allowable area for these openings is strictly regulated based on the limiting distance (the distance from the building to the property line). For non-sprinklered buildings with a limiting distance of 2 meters or less, the maximum area for an individual opening is capped to prevent vertical and horizontal fire migration.
- Limiting Distance of 1.2m: Maximum area of 0.35 m²
- Limiting Distance of 1.5m: Maximum area of 0.78 m²
- Limiting Distance of 2.0m: Maximum area of 1.88 m²
Spacing and Structural Requirements
Sentence (6) of the code dictates that unprotected openings within a single room or space must maintain a minimum spacing of 2 meters, both horizontally and vertically. This prevents concentrated heat from a single fire source from overwhelming the fire protection of the exterior wall assembly. As empcontracting.ca Inc. your construction contractor in London, Ontario, we carefully map these distances during the design-build phase to avoid costly inspection failures.
Fire Department Response Time Factors
An often-overlooked detail in the NBC is Article 3.2.3.1.(8), which requires a 50% reduction in the effective limiting distance if local fire department response times exceed 10 minutes. This adjustment ensures that buildings in more remote or high-traffic areas are constructed with more robust fire resistance to compensate for delayed emergency arrival.
