National Building Code Standards for Elevator Fire Separations and Service Facilities

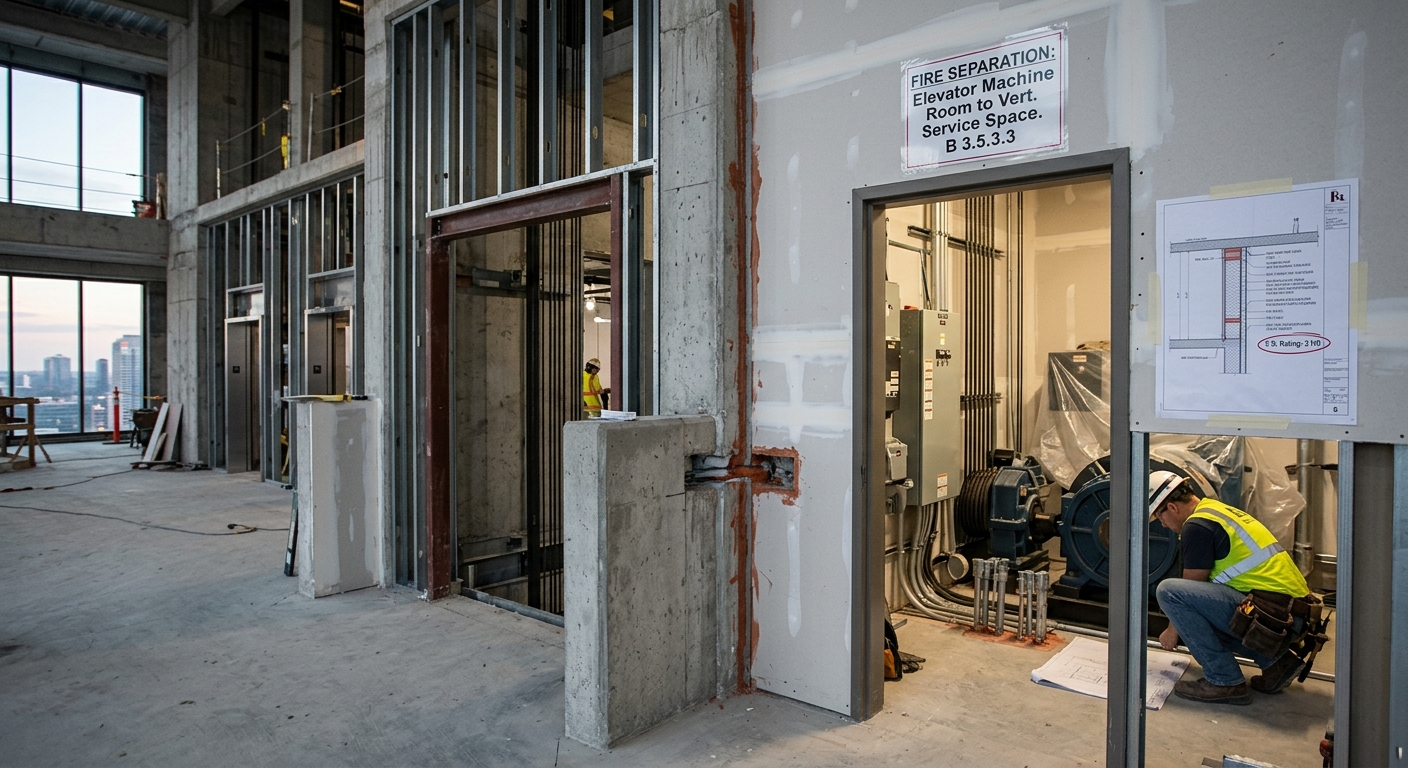

Understanding Elevator Machine Room Fire Separations

Compliance with the National Building Code of Canada (NBCC) is critical for structural safety and fire prevention. According to Section 3.5.3.3 of Division B, rooms containing elevator machinery must be isolated from the rest of the building. At empcontracting.ca Inc. your construction contractor in London, Ontario, we ensure these fire separations meet or exceed the fire-resistance ratings required for the vertical service spaces containing the elevator hoistway.

Key Exceptions in Fire Rating

A machine room may not require separate isolation from the hoistway it serves, provided both the room and the hoistway are collectively separated from the rest of the building by the mandated fire-resistance rating. This nuances in the code allow for more flexible architectural designs while maintaining rigorous safety standards.

Elevator Car Dimensions and Emergency Access

Modern building requirements prioritize emergency medical access. Under Section 3.5.4.1, at least one elevator on every storey must be sized to accommodate a patient stretcher. The specific dimensions required are 2,010 mm in length and 610 mm in width in the prone position.

Stretcher Access Exceptions and Signage

While standard elevators must accommodate stretchers, the code provides exceptions for limited-use/limited-application (LULA) elevators installed per ASME A17.1/CSA B44 standards. Furthermore, compliant elevators must be clearly identified at the building's main entrance level to assist first responders. If you are planning a multi-storey project, empcontracting.ca Inc. your construction contractor in London, Ontario can help you navigate these accessibility requirements.

General Service Facilities and Electrical Compliance

Section 3.6 covers the broad scope of service facilities, including mechanical penthouses, crawlspaces, and attic spaces. Ensuring these areas are built to code is essential for the longevity of the building’s infrastructure.

Electrical and Lightning Protection

Every service facility must adhere to strict electrical guidelines. Per Section 3.6.1.2, all electrical equipment and wiring must conform to provincial regulations or the CSA C22.1 (Canadian Electrical Code, Part I). Additionally, any lightning protection systems installed must meet CAN/CSA-B72 standards. For expert implementation of these complex systems, trust empcontracting.ca Inc. your construction contractor in London, Ontario to deliver code-compliant results.
