National Building Code Standards for Electrical Vaults and Fire Separations
When navigating complex commercial builds, compliance with the National Building Code of Canada is paramount. At empcontracting.ca Inc. your construction contractor in London, Ontario, we ensure that every aspect of your electrical infrastructure and fire safety systems meets or exceeds these rigorous standards.

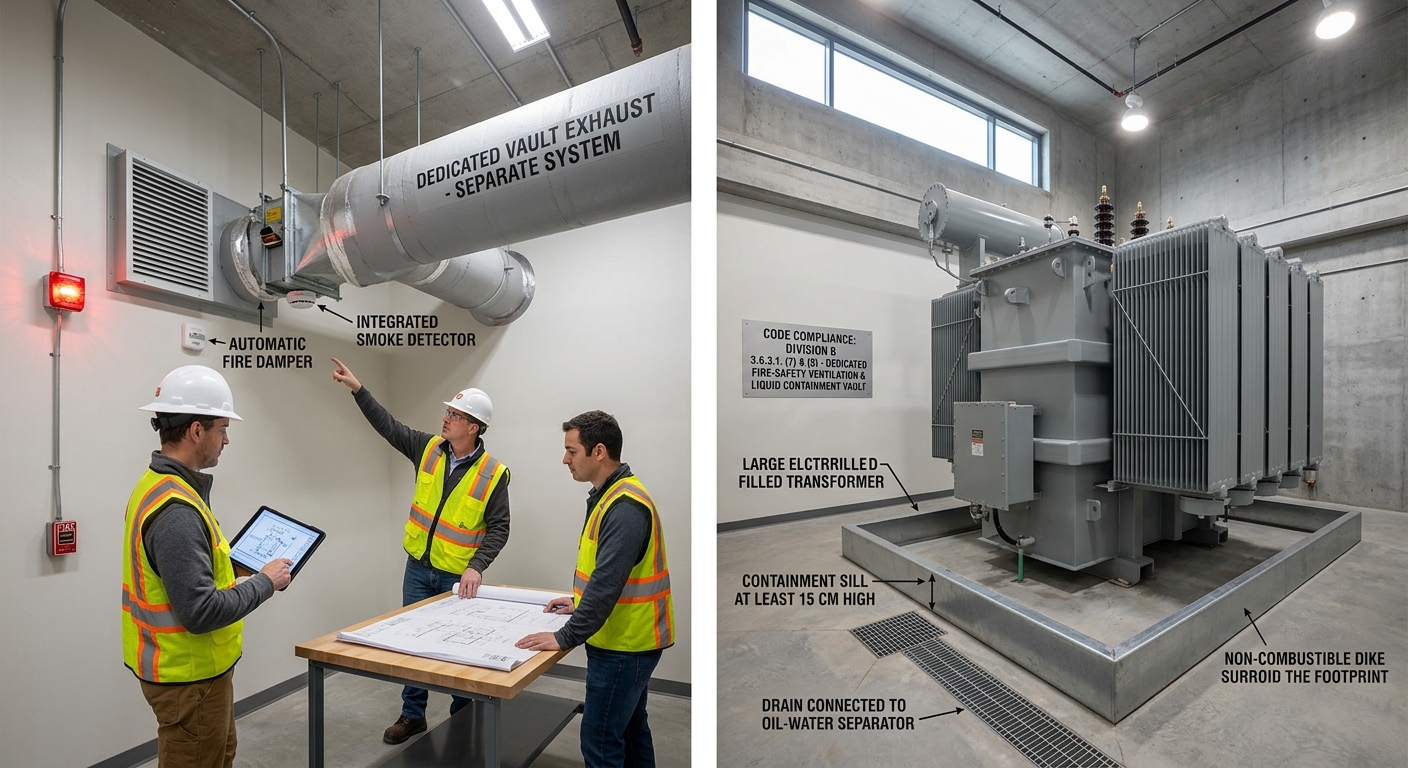

Electrical Equipment Vault Requirements (Division B 3.6.3.1)
According to the National Building Code, electrical equipment vaults must adhere to strict safety and containment protocols to prevent fire spread and environmental hazards:
- Dedicated Ventilation: Ventilation systems for vaults must be entirely separate from the rest of the building. These systems must be designed to shut off automatically if a fire is detected within the vault.
- Liquid Containment: To prevent the spread of hazardous fluids, vault floors must be liquid-tight. Walls and sills must be constructed to a height sufficient to contain the volume of the largest piece of equipment, with a minimum height requirement of 100 mm.
- Security: All electrical vaults must be strictly secured to prevent unauthorized access.
3.6.2.8 Emergency Power Installations
Emergency power systems are critical for life safety and fire protection. At empcontracting.ca Inc. your construction contractor in London, Ontario, we implement emergency generator rooms that comply with the following:
Location and Fire Separation
Generators intended for emergency lighting and fire safety must be housed in a dedicated room. This room must be separated from the rest of the building by a fire separation with a fire-resistance rating of at least 2 hours. This space should only contain the generating set and its ancillary equipment to minimize fire load.
3.6.3 Vertical Service Spaces and Fire Separations
Vertical service spaces (such as utility shafts) represent a significant risk for vertical fire spread. The NBC requires these spaces to be separated from adjacent storeys based on the building's overall fire-resistance requirements.
Table 3.6.3.1: Fire-Resistance Rating Requirements
| Fire-Resistance Rating of Floor Assembly | Minimum Fire-Resistance Rating of Vertical Service Space |
|---|---|
| Less than 45 min | N/A |
| 45 min | 45 min |
| 1 h | 45 min |
| 1.5 h | 1 h |
| 2 h or more | 1 h |
Structural Integrity of Shafts
To ensure total containment, any vertical service space that does not reach the roof or the bottom of the building must be enclosed at its highest or lowest level with construction matching the fire-resistance rating of the space's walls. Furthermore, only essential openings are permitted through these enclosures to maintain the integrity of the fire barrier.
Trust empcontracting.ca Inc. your construction contractor in London, Ontario to handle your next commercial project with the technical expertise required by the National Building Code of Canada.
