Understanding Table 9.23.10.7.-A: Structural Support for Exterior Stud Walls

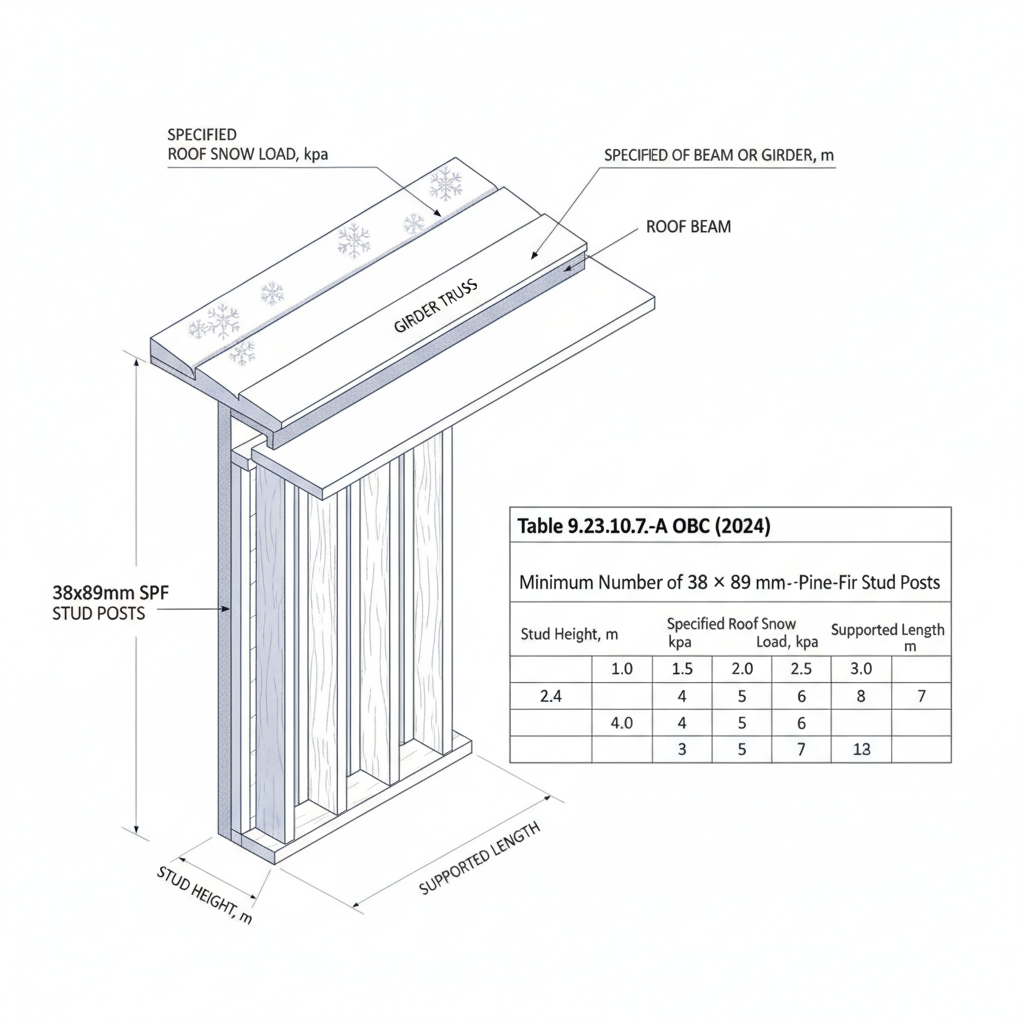

In the 2024 Building Code Compendium, Table 9.23.10.7.-A specifies the required number of 38 × 89 mm Spruce-Pine-Fir (SPF) stud posts needed to support concentrated loads from girder trusses and roof beams in exterior walls. For any major structural project, ensuring the load path is correctly supported down to the foundation is a critical safety requirement.
Key Structural Requirements for Stud Posts
- Minimum Bearing: Roof beams and girder trusses require a minimum bearing length of 89 mm to ensure proper load distribution.
- Material Type: The values provided in Table 9.23.10.7.-A are specifically for Spruce-Pine-Fir (SPF) species lumber.
- Dead Load Assumptions: Calculations assume a roof dead load of 0.62 kPa.
Impact of Snow Loads and Span Lengths
The number of studs required fluctuates significantly based on the Specified Roof Snow Load (ranging from 1.0 to 3.0 kPa) and the supported length of the roof. As the span of the beam or girder increases—reaching up to 12.0 meters—the structural demand requires up to five 38 × 89 mm studs to maintain wall integrity under peak Ontario winter conditions.
Compliance for Girder Trusses
While the OBC provides a baseline, always consult the truss manufacturer. Girder trusses may require specific bearing lengths or additional reinforcement beyond the standard 89 mm depending on the proprietary design of the roof system.
