2024 Ontario Building Code: Maximum Hem-Fir Lintel Spans for London Residential Construction
Sarah's Expert Insight
OBC Compliance Specialist
"In high-snow-load regions like Muskoka or even during heavy London winters, accurately identifying your kPa rating is the difference between a stable header and a failing one. At empcontracting.ca Inc., we often recommend upgrading to structural sheathing to gain that 15% span bonus, which is vital for the large, open-concept window designs currently trending in Oakville and London luxury homes."

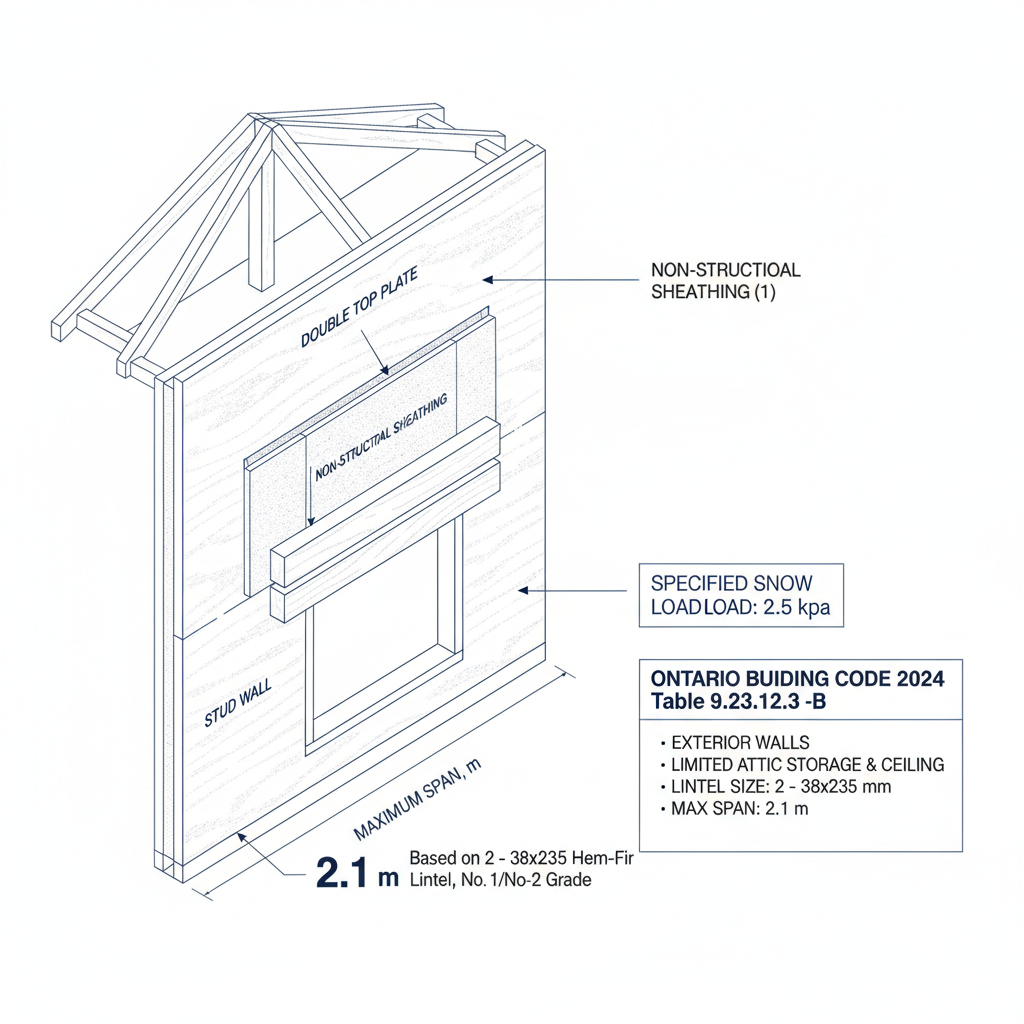

Understanding OBC Table 9.23.12.3.-B: Hem-Fir Lintel Requirements
When planning a residential build or renovation, selecting the correct lintel size is paramount for structural integrity. As empcontracting.ca Inc. your construction contractor in London, Ontario, we strictly adhere to the 2024 Building Code Compendium standards for No. 1 or No. 2 Grade Hem-Fir lintels under non-structural sheathing conditions.
Lintel Spans and Specified Snow Loads
The maximum allowable span for a lintel depends heavily on the load it supports and the regional snow load. For instance, a 2-38 x 286 mm lintel supporting only a roof and ceiling (tributary width 4.9 m) at a 1.0 kPa snow load can span up to 3.23 meters. However, as the number of storeys increases or the snow load rises (up to 3.0 kPa), these spans are significantly reduced to ensure the safety of the structure.
Key Factors Influencing Lintel Selection
- Structural Sheathing: Utilizing structural sheathing (min. 9.5 mm) can increase allowable lintel spans by 15%, offering more flexibility for wide window or door openings.
- Bearing Length: For lintel spans up to 3 meters, a minimum bearing length of 38 mm is required. For spans exceeding 3 meters, the bearing length must be at least 76 mm.
- Interior vs. Exterior Walls: Interior walls often allow for different span calculations since they are not subject to external snow loads, though they may carry significant floor loads from upper storeys.
Optimizing Your Build with empcontracting.ca Inc.
Calculating tributary widths and snow load variables requires precision. Whether you are building a custom home in London or an addition in the surrounding area, empcontracting.ca Inc. your construction contractor in London, Ontario, ensures that every Hem-Fir lintel is sized correctly to prevent sagging and structural failure, specifically accounting for the 2024 OBC updates.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
