Ontario Building Code Guide for Group E and F Buildings: Fire-Resistance and Area Limits
Sarah's Expert Insight
OBC Compliance Specialist
"The 2024 OBC updates for Group E and F buildings highlight the massive benefit of sprinkler systems in commercial design; for example, a sprinklered mercantile building can often double its allowable footprint compared to a non-sprinklered one. At empcontracting.ca Inc., we frequently advise clients in London and Muskoka to weigh the upfront cost of fire suppression against the long-term value of increased building area and reduced structural fire-rating requirements."

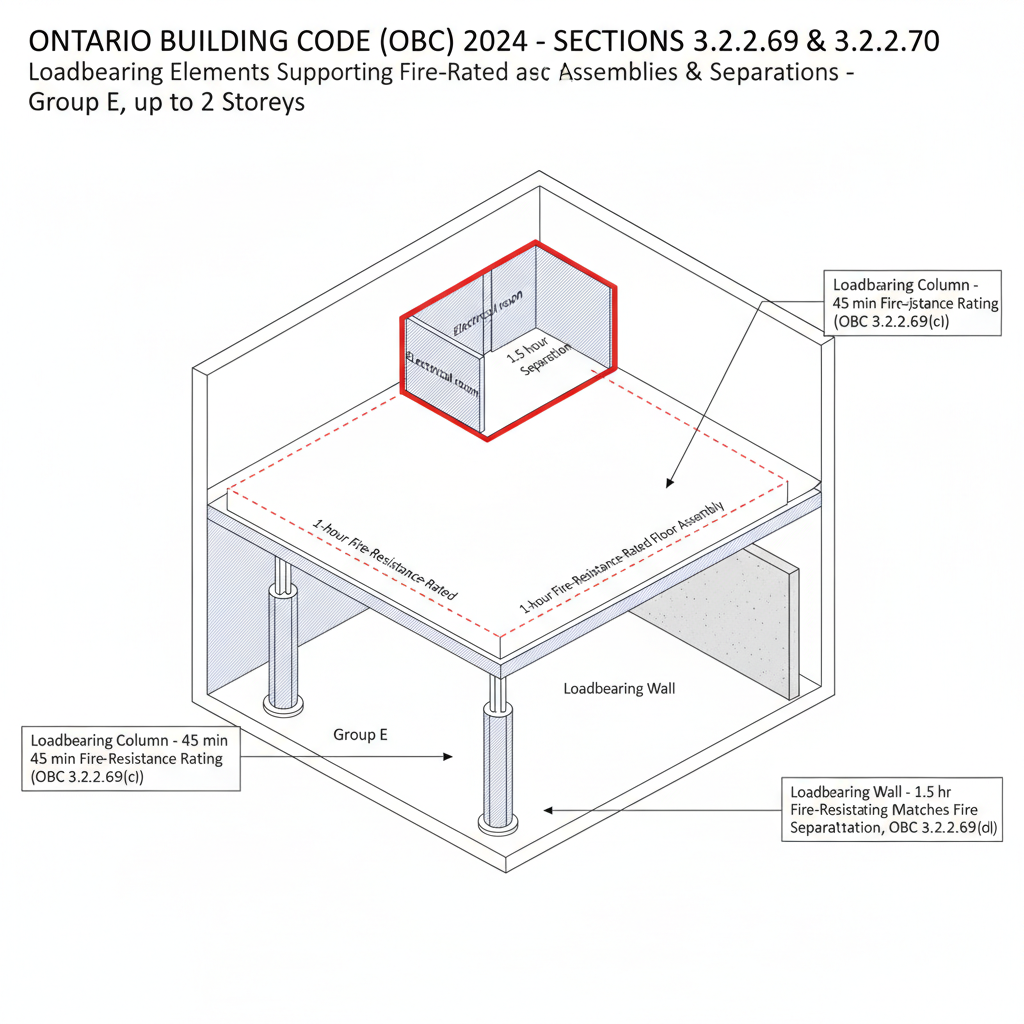

Structural Fire-Resistance Requirements (OBC 3.2.2.69)
According to the 2024 Ontario Building Code Compendium, structural integrity is a priority for loadbearing elements. Under Section 3.2.2.69, loadbearing walls, columns, and arches that support assemblies requiring a fire-resistance rating must either have a rating of at least 45 minutes or be made of noncombustible construction. Furthermore, any loadbearing element supporting a fire separation must match the fire-resistance rating of that separation. For precision in these complex safety requirements, empcontracting.ca Inc. your construction contractor in London, Ontario, ensures every project meets these rigorous standards.
Group E (Mercantile) Occupancy Standards
Non-Sprinklered Group E Buildings (OBC 3.2.2.70)
For mercantile buildings up to two storeys that are not required to be sprinklered, the OBC provides strict area limits based on the number of streets the building faces. For instance, a single-storey building facing three streets can expand up to 1,500 m², whereas a two-storey building is limited to 900 m². These structures allow for combustible or noncombustible construction, provided that floor assemblies act as fire separations with at least a 45-minute rating.
Sprinklered Group E Buildings (OBC 3.2.2.71)
Incorporating a sprinkler system significantly increases the permitted building area. A one-storey sprinklered Group E building can reach up to 3,000 m². This provides developers in the London area with greater design flexibility. When planning large-scale retail spaces, empcontracting.ca Inc. your construction contractor in London, Ontario, can help navigate these area-to-safety ratios to maximize your investment.
High-Hazard Industrial Buildings (Group F, Division 1)
Sprinklered Requirements for Industrial Sites (OBC 3.2.2.72)
For high-hazard industrial buildings up to four storeys, the code mandates sprinkler systems. The allowable area scales inversely with height: a single-storey facility allows for 9,000 m², while a four-storey facility is restricted to ,2250 m². Adhering to these calculations is vital for industrial zoning compliance in Oakville or Muskoka's growing commercial sectors.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
