Understanding OBC 3.4.5.2 Exit Sign Requirements for Ontario Commercial Construction
Sarah's Expert Insight
OBC Compliance Specialist
"At empcontracting.ca Inc. your construction contractor in London, Ontario, we find that many developers in Oakville and Muskoka overlook the specific circuit isolation requirements for exit signs, which can lead to costly delays during final inspections. Our team prioritizes the integration of ISO-compliant graphical symbols and tactile 'EXIT' signage early in the design phase to ensure full accessibility and life-safety compliance for every commercial build."
Compliance Standards for Exit Signage and Emergency Lighting
The 2024 Building Code Compendium under Section 3.4.5.2 provides rigorous standards for visual and tactile exit information. As a leading firm in the industry, empcontracting.ca Inc. your construction contractor in London, Ontario, ensures that every project meets these safety-critical specifications.

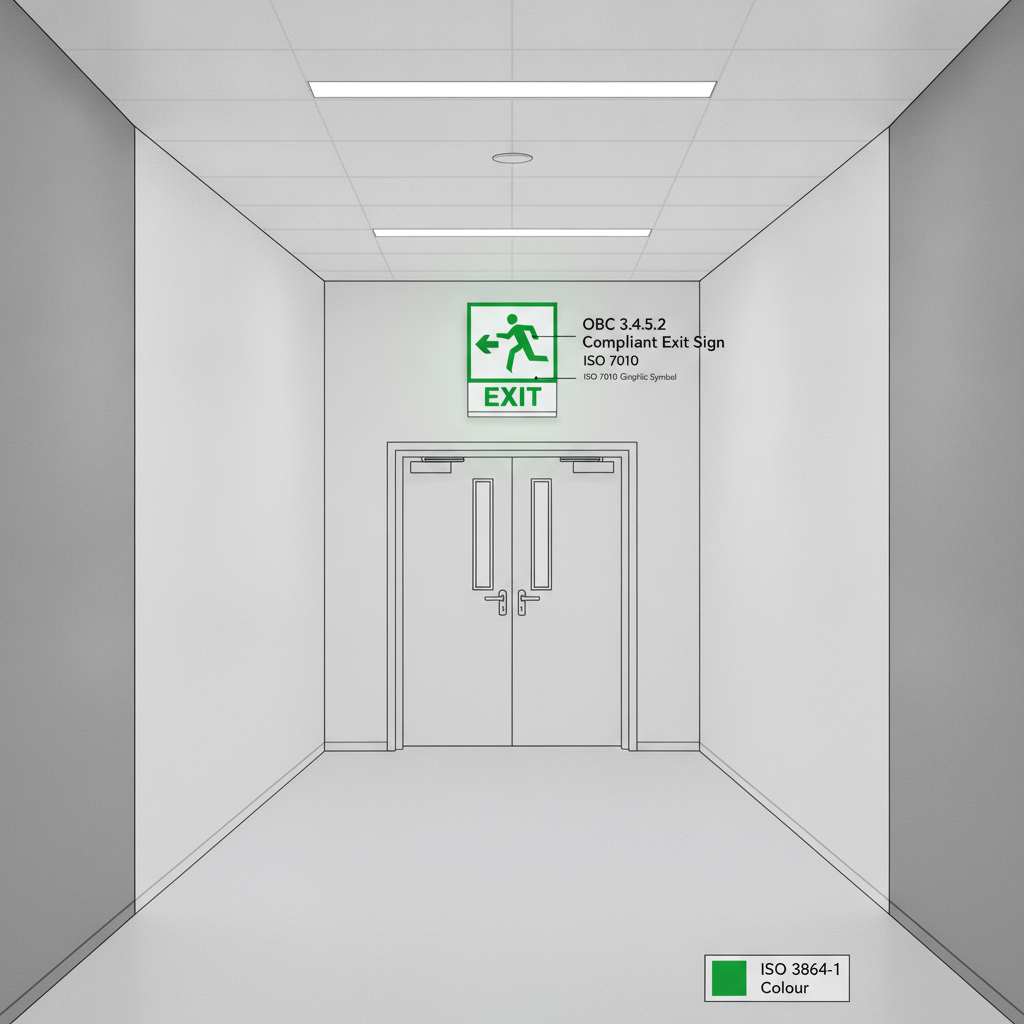

Graphical Symbols and Visual Consistency
Every exit sign must be visible upon approach and utilize the standardized green and white graphical symbols. To remain compliant, signs must meet ISO 3864-1 and ISO 7010 design principles, specifically utilizing symbols E001 (left), E002 (right), E005 (90-degree arrow), and E006 (45-degree arrow).
Illumination and Electrical Integrity
Illumination is a non-negotiable safety feature under the Ontario Building Code. Requirements include:
- Internally Illuminated Signs: Must be continuously lit and conform to CSA C22.2 No. 141.
- Externally Illuminated Signs: Require a dedicated electrical circuit for continuous operation.
- Photoluminescent Signs: Must conform to CAN/ULC-S572 and be rated for specific durations to maintain visibility during power failures.
Circuitry and Emergency Power
If an exit sign relies on electrical power, the circuit must serve no other equipment except emergency lighting in that area. Furthermore, these circuits must be connected to an emergency power supply as outlined in Sentence 3.2.7.4.(1). Ensuring this dedicated power supply is crucial for passing inspections in high-occupancy venues.
Tactile Information and Accessibility
Accessibility is a major focus of the modern code. Sentence 3.4.5.2.(1) mandates that exit signs displaying the word 'EXIT' in tactile form must be mounted on the approach side of doors. This ensures that all occupants, regardless of visual ability, can safely navigate toward egress points during an emergency.
Special Occupancy Requirements
Specific rules apply to hotels, large floor areas (occupancy > 150), and licensed establishments where lighting levels are typically low. In these cases, exit signs must be strategically placed over or adjacent to every egress doorway to provide clear directional guidance.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
