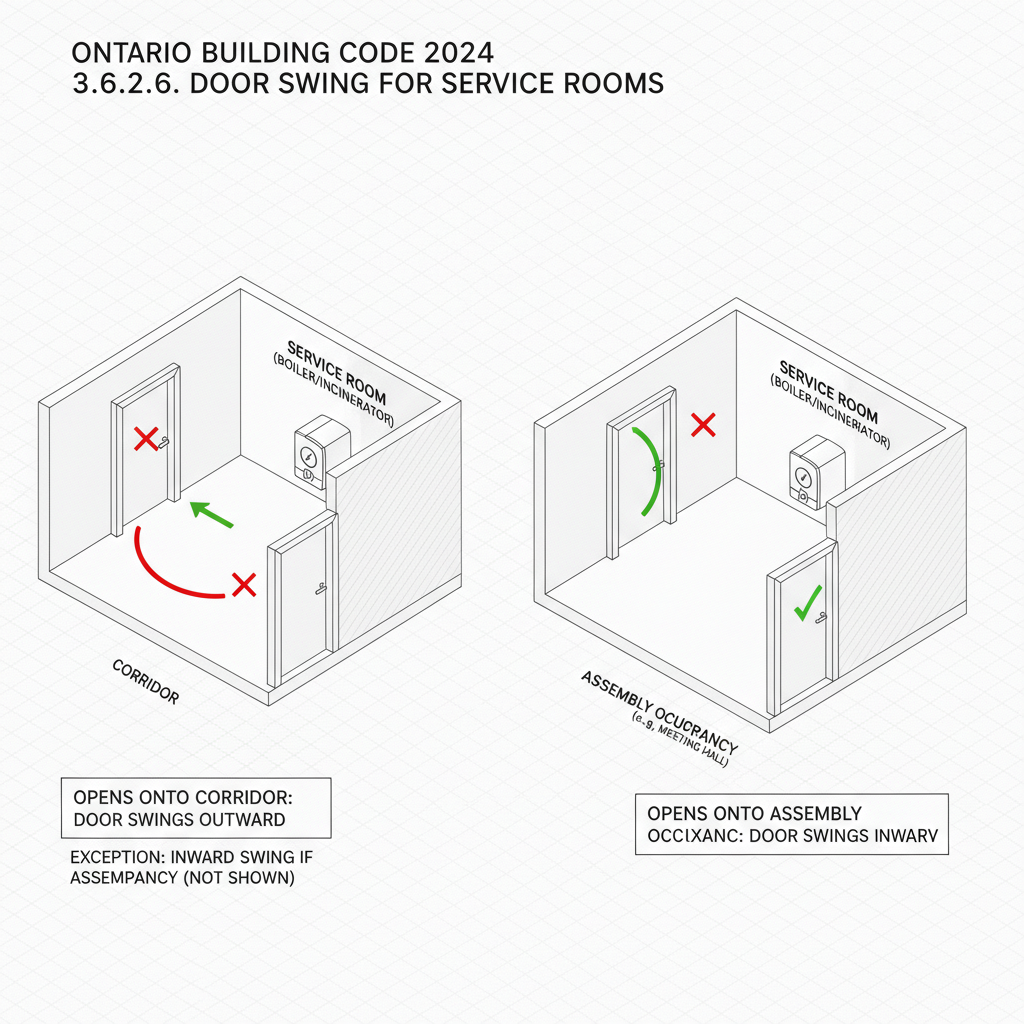

3.6.2.6. Door Swing Regulations for Ontario Service Rooms
The Ontario Building Code (OBC) dictates specific safety protocols for the operation of doors in service rooms. For rooms containing boilers or incinerators, the door must swing outward to facilitate quick egress. However, an exception is made where the door opens into a corridor or an assembly occupancy area, in which case the door must swing inward to prevent obstructing high-traffic paths.
3.6.2.7. Electrical Equipment Vault Construction and Safety
Fire Separation and Structural Integrity
Electrical equipment vaults require robust protection. Under the OBC, these must be enclosed by solid masonry or concrete fire separations. A 3-hour fire-resistance rating is mandatory unless an automatic fire extinguishing system is installed, which reduces the requirement to 2 hours. Floors and ceilings must generally consist of reinforced concrete at least 150 mm thick, while structures must be anchored to resist dislodgement by explosion.
Ventilation and Temperature Management
Proper airflow is critical to prevent equipment failure. Vaults must have a ventilation system designed to keep ambient temperatures below 40°C. The code specifies precise inlet and outlet opening sizes based on the kVa capacity of the electrical equipment. Inlets for fresh air must be positioned no more than 1,000 mm above the floor level.
Prohibitions and Security
To maintain the integrity of the fire separation, only pipes or ducts necessary for fire protection or electrical operation are permitted to penetrate the vault walls. Additionally, every vault must be secured with a substantial lock or padlock to prevent unauthorized access. For comprehensive compliance on your next build, consult empcontracting.ca Inc. your construction contractor in London, Ontario.
