2024 Ontario Building Code (OBC) Accessibility: Barrier-Free Drinking Fountains and Platforms
Sarah's Expert Insight
OBC Compliance Specialist
"In my experience consulting on commercial builds in London and Oakville, many contractors overlook the specific cane-detectability height (680 mm) for cantilevered fountains, which can lead to failed inspections. At empcontracting.ca Inc., we ensure that tactile attention indicators on platforms are integrated seamlessly during the flooring phase to maintain both safety and aesthetic appeal for our clients in the Muskoka and London regions."
When planning commercial or public developments, adhering to the 2024 Ontario Building Code (OBC) for barrier-free accessibility is paramount. At empcontracting.ca Inc. your construction contractor in London, Ontario, we specialize in implementing these technical requirements to ensure your facility is inclusive and compliant.

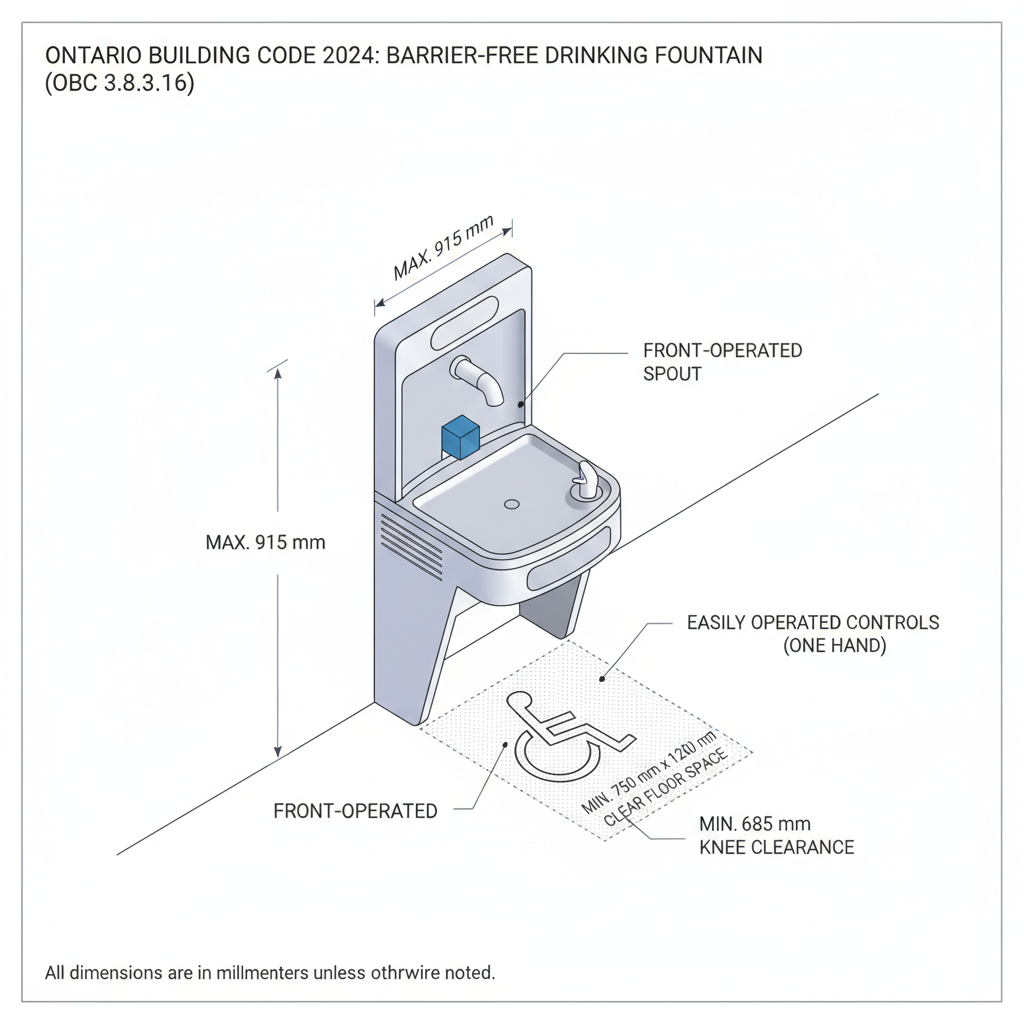

OBC 3.8.3.16: Barrier-Free Drinking Fountains
The code specifies that where drinking fountains are provided, at least one must be barrier-free. This ensures that individuals using wheelchairs or with limited mobility can safely access water.
Technical Specifications for Fountains
- Spout Placement: The spout must be near the front, no higher than 915 mm from the finished floor.
- Controls: Must be easily operated with one hand (maximum 22 N force) or activate automatically.
- Water Stream: Must project at least 100 mm high at specific vertical angles based on spout distance from the front edge.
- Cane Detectability: For safety of the visually impaired, cantilevered units must be detectable by a cane at or below 680 mm.
- Clearances: Cantilevered units require a clear width of 760 mm and a knee clearance height of 735 mm.
3.8.3.16A: Water-Bottle Filling Stations
Modern builds increasingly include water-bottle filling stations. The OBC requires these to be accessible, especially along barrier-free paths of travel. They must feature automatic or easy-to-use controls and be operable at a maximum height of 1200 mm above the floor, providing a clear floor space of 800 mm by 1350 mm for approach.
3.8.3.17: Safety Standards for Platforms
Safety on elevated surfaces is a priority. Under Article 3.8.3.17, platforms that are not protected by a guard and are higher than 250 mm or steeply sloped must have tactile attention indicators. This warning system is essential for preventing falls, though it does not apply to the front edges of performance stages.
Partner with Experts
Compliance with Sections 3.8.3.16 through 3.8.3.17 requires precision. empcontracting.ca Inc. your construction contractor in London, Ontario provides the expertise needed to manage these details from design to final inspection.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
