2024 Ontario Building Code: Public Spa Circulation and Safety Requirements
Sarah's Expert Insight
OBC Compliance Specialist
"Compliance with the suction outlet and piping velocity standards in Section 3.12.4.1 is critical for mitigating liability in high-traffic public spas in London, Oakville, and Muskoka. At empcontracting.ca Inc., we emphasize the installation of secondary vacuum relief systems and remote timers as essential safety layers that exceed the baseline requirements of the 2024 Ontario Building Code."
Navigating the complex regulations of the 2024 Building Code Compendium is essential for any commercial aquatic installation. As empcontracting.ca Inc. your construction contractor in London, Ontario, we specialize in implementing these high-safety standards to ensure your project is both compliant and durable.
Outlet and Circulation System Standards

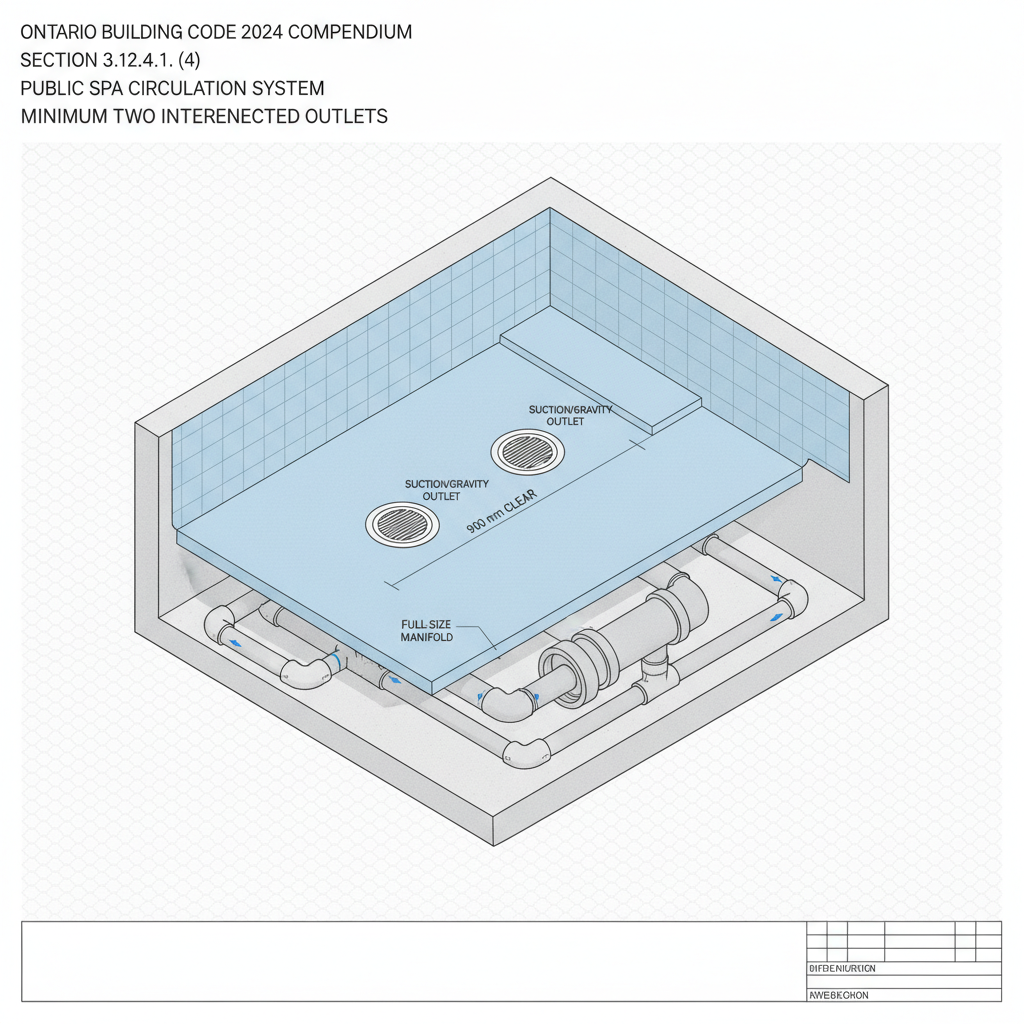

According to OBC 3.12.4.1, every public spa circulation system must utilize at least two suction or gravity outlets. These outlets must be interconnected to a full-size manifold and generally separated by a clear distance of 900 mm to prevent suction entrapment. For smaller builds where space is restricted, specific exceptions allow for outlets on different planes, provided they remain close to the spa floor.
Fittings and Entrapment Prevention
Safety is the primary focus of the code regarding fittings. All suction fittings must have openings no larger than 7 mm and be designed to keep water flow below 0.45 m/s. Unless equipped with ASME A112.19.8 compliant anti-entrapment covers, these specifications are mandatory to protect users. Furthermore, all submerged fittings must be secured with corrosion-resistant fasteners requiring a tool for removal.
Piping Velocity and Vacuum Safety
The code strictly regulates water velocity to protect the mechanical integrity of the spa. Suction pipe velocity is capped at 1.8 m/s, while pressure piping for plastic is limited to 3.0 m/s. Additionally, every system must be equipped with a vacuum relief mechanism, such as a vacuum release or limit system, to instantly break suction in an emergency.
Water Treatment and Operational Controls
Public health is maintained through mandatory continuous disinfection systems, using chlorine or bromine. Finally, for hydro-massage jets, a timing device must be installed. Crucially, the OBC requires this timer to be located where a user is forced to exit the spa to reset it, preventing the physical risks associated with prolonged immersion.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
