Understanding the complexities of the 2024 Ontario Building Code (OBC) is essential for any structural project. As empcontracting.ca Inc. your construction contractor in London, Ontario, we prioritize compliance with these rigorous load standards to ensure the safety and longevity of your build.
Handrail and Guardrail Load Specifications
The OBC Part 4 provides strict mandates for the design and construction of handrails and guards. These elements must be capable of withstanding specific live loads without failing:

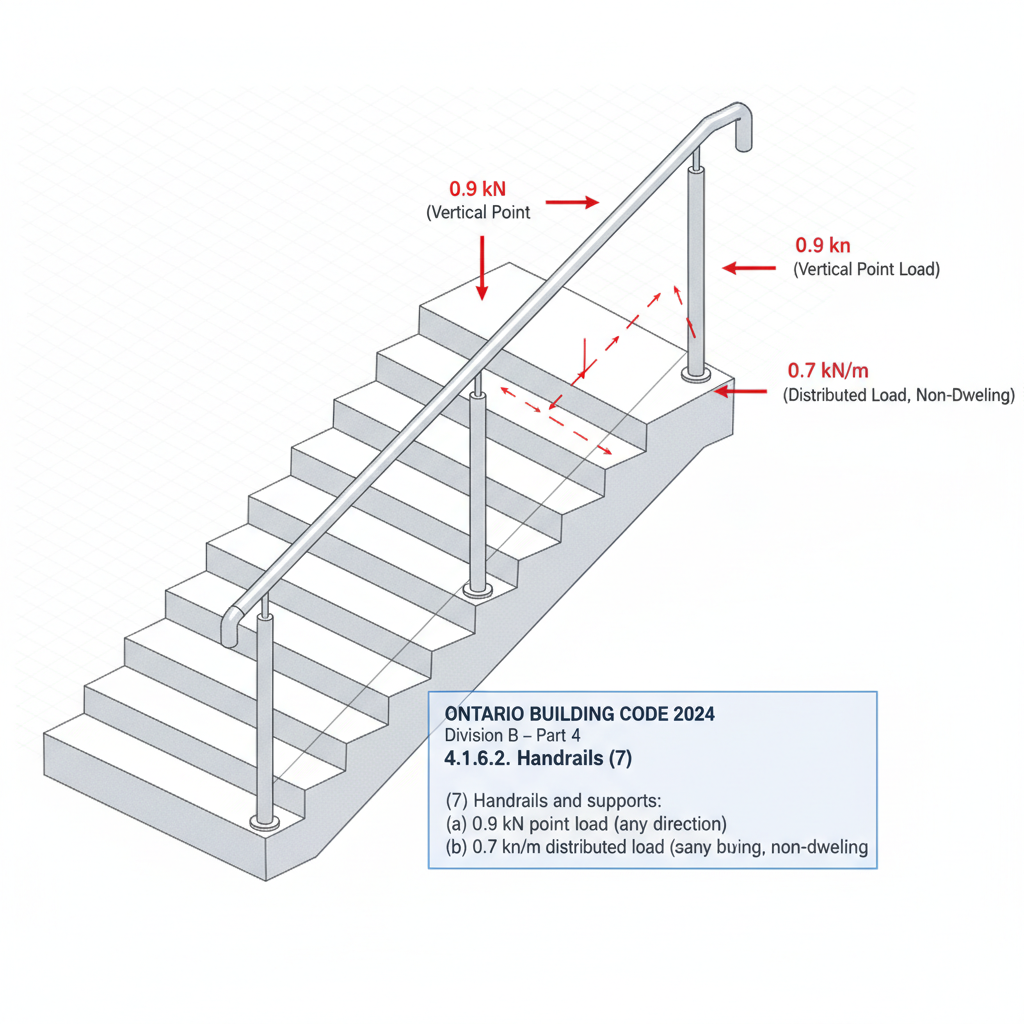

Handrail Strength (Section 4.1.6.2)
- Point Loads: 0.9 kN applied at any point and in any direction.
- Uniform Loads: 0.7 kN/m for handrails located outside of individual dwelling units.
Vehicle Guardrails (Section 4.1.5.15)
For areas where vehicles are present, guardrails must be designed for a concentrated horizontal load of 22 kN, applied 500 mm above the floor surface. This is critical for parking structures and commercial loading bays.
Structural Integrity of Walls and Firewalls
Walls Acting as Guards (Section 4.1.5.16)
When a floor elevation is more than 600 mm higher than the adjacent surface, the wall must resist a lateral outward design load of at least 0.5 kPa to prevent structural failure or falls.
Firewall Stability (Section 4.1.5.17)
Firewalls are not just for fire separation; they must be structurally sound. They are required to resist a factored lateral load of 0.5 kPa under fire conditions, ensuring that even if the adjacent structure fails, the firewall remains standing.
Snow and Rain Load Calculations for Ontario Roofs
In regions like London and Muskoka, snow load calculation is a primary engineering concern. The OBC 2024 uses a specific formula to determine the specified load (S):
The Snow Load Formula (Section 4.1.6.2)
S = Is [Ss (Cb Cw Cs Ca) + Sr]
- Is: Importance factor for the building.
- Ss: 1-in-50-year ground snow load (location specific).
- Cb: Basic roof snow load factor.
- Cw/Cs/Ca: Factors for wind exposure, roof slope, and accumulation.
- Sr: Associated rain load.
By partnering with empcontracting.ca Inc. your construction contractor in London, Ontario, you ensure that these technical variables are expertly managed during the design and framing phases.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
