Introduction to Seismically Isolated Structures in Ontario
Navigating the complexities of the 2024 Ontario Building Code (OBC) requires specialized knowledge, particularly regarding advanced structural engineering. At empcontracting.ca Inc. your construction contractor in London, Ontario, we prioritize structural integrity and code compliance for every project.

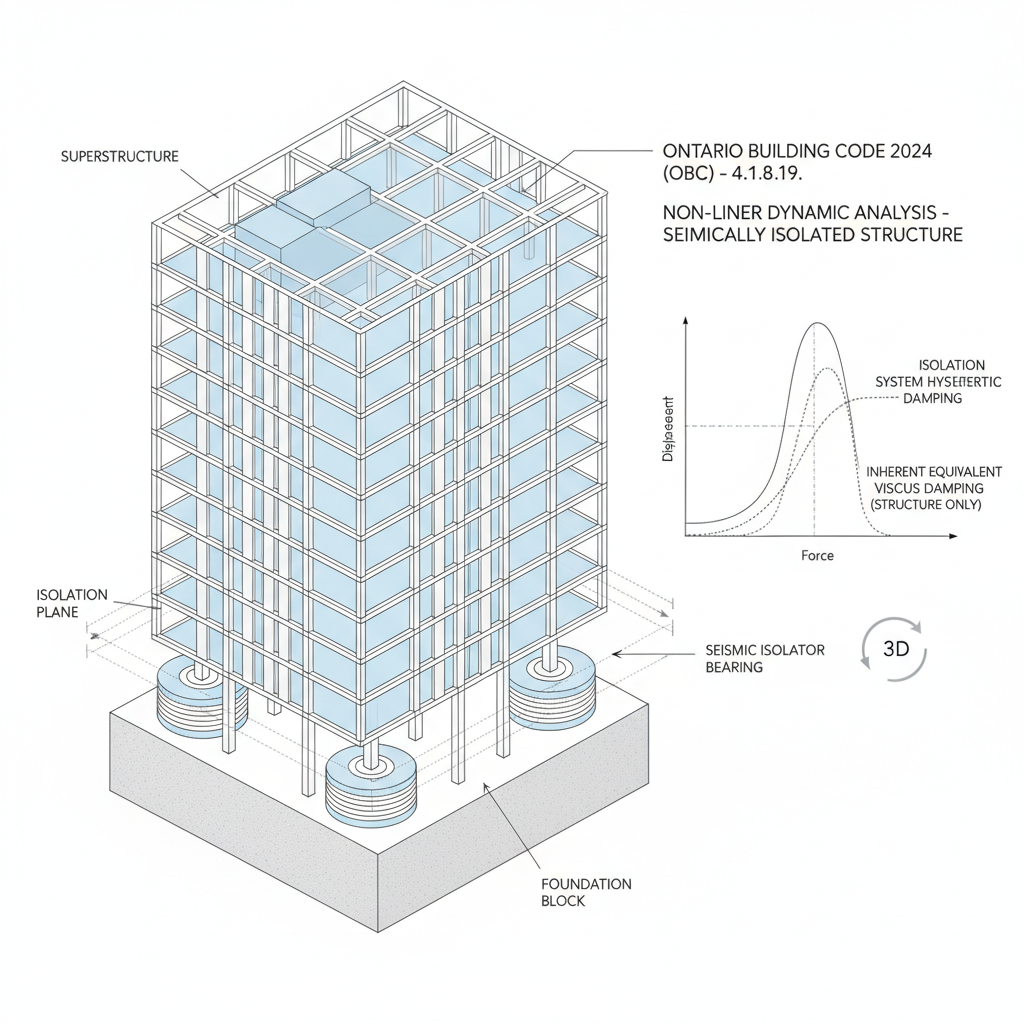

Analysis and Modeling Requirements (OBC 4.1.8.19)
The code mandates a rigorous three-dimensional Non-linear Dynamic Analysis for seismically isolated structures. This ensures that the building's response to seismic events is modeled with extreme precision. Key criteria include:
- Damping Limits: Inherent equivalent viscous damping is restricted to 2.5% of critical damping unless otherwise verified.
- Isolator Detail: Every isolator unit must be modeled to account for non-linear force-deformation characteristics and material variations over the structure's lifespan.
- Ground Motion Time Histories: Scaling must follow strict engineering practices, compatible with site-specific evaluation response spectra.
Seismic Isolation Design Provisions (OBC 4.1.8.20)
Specific design provisions are in place to ensure the isolation system performs reliably under stress:
- Period Ratios: The isolated structure's period must be at least three times the period of the structure above the isolation interface when calculated as a fixed base.
- Restoring Force: The system must be configured to produce a specific lateral restoring force to ensure the building returns to its original position.
- Structural Continuity: A diaphragm must be provided immediately above the isolation interface to handle non-uniform ground motions.
Validation Through Rigorous Testing
The OBC requires that force-deformation and damping characteristics be validated by testing at least two full-size specimens of each isolator type. Before installation, representative samples must also undergo validation tests to ensure they meet the design specifications.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
