Understanding OBC Table 7.2.4.5 for Proper Plumbing Installation
Compliance with the 2024 Building Code Compendium is critical for ensuring the longevity and safety of residential and commercial plumbing systems. Section 7.2.4.5 specifically outlines the acceptable pipe arrangements and fittings for Drain-Waste-Vent (DWV) systems. When planning your next build, working with empcontracting.ca Inc. your construction contractor in London, Ontario, ensures these technical standards are met with precision.
Acceptable DWV Fitting Types
The OBC identifies specific fittings that are permitted for various pipe arrangements to ensure proper hydraulic flow and venting. These include:
- Straight T and Double T or Cross fittings
- Sanitary T (Short Turn TY) and Double Sanitary T
- Combination Y & 1/8 Bend (Long Turn TY) and Double versions
- Standard Y and Double Y fittings
- Double Waste Fittings
Critical Sizing Restrictions for DWV Branches

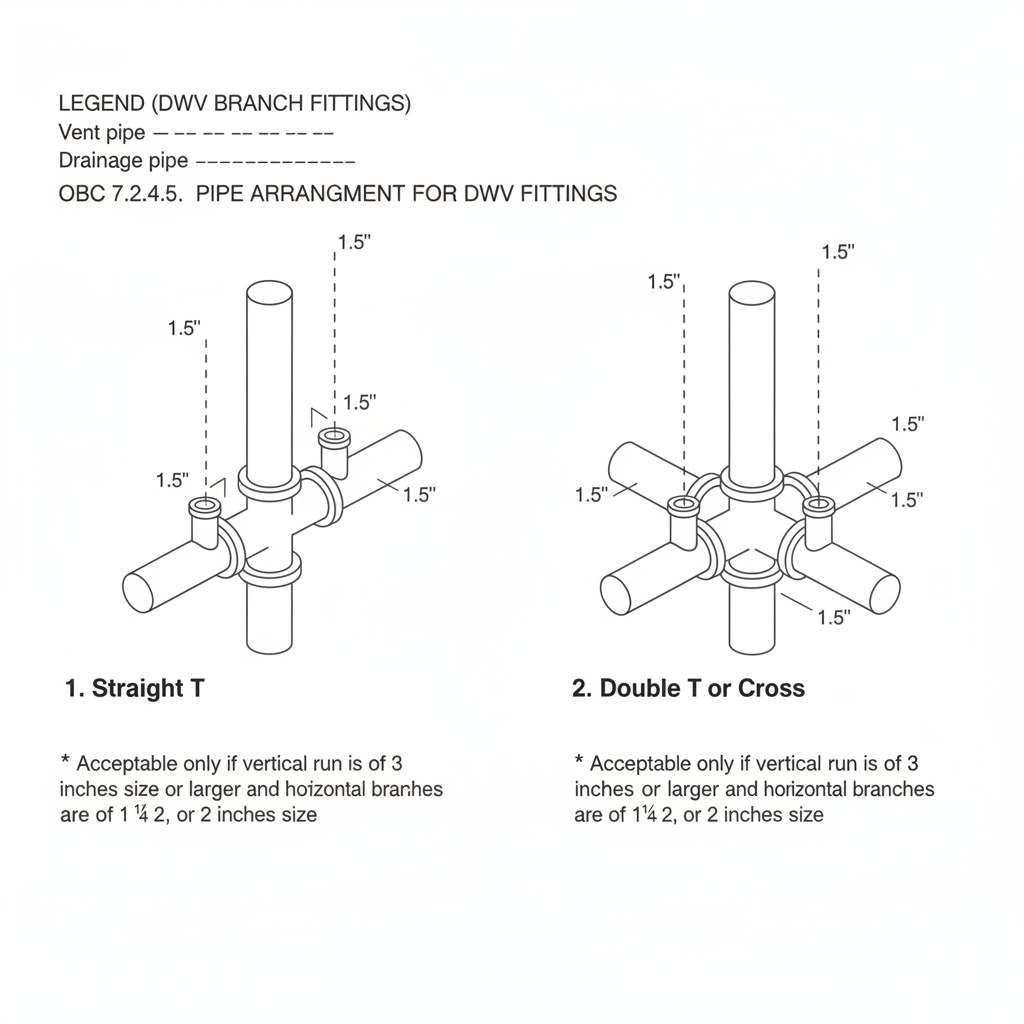

According to the 2024 standards, certain arrangements carry specific size limitations to prevent blockages and pressure issues. Specifically, certain fittings are only acceptable if the vertical run is 3 inches or larger, while the horizontal branches must be sized at 1-1/4, 1-1/2, or 2 inches. This nuance is vital for high-density builds in urban centers like Oakville or custom cottage projects in Muskoka.
