Ontario Building Code 2024 Plumbing Standards: Backflow Prevention and Valve Safety for London Construction
Sarah's Expert Insight
OBC Compliance Specialist
"The 49°C temperature cap and the extensive CSA B64 backflow requirements are non-negotiable for project sign-off in high-growth areas like London and Oakville. At empcontracting.ca Inc. your construction contractor in London, Ontario, we meticulously audit plumbing specifications during the design phase to ensure long-term liability protection and occupant safety, particularly in Muskoka cottage builds where private water systems require extra vigilance."
Navigating the complexities of the 2024 Ontario Building Code (OBC) is essential for any successful renovation or new build. Section 7.2.10 outlines critical requirements for plumbing fixtures, focusing on user safety, water purity, and system integrity. As your expert partner, empcontracting.ca Inc. your construction contractor in London, Ontario, ensures every installation meets these rigorous provincial standards.

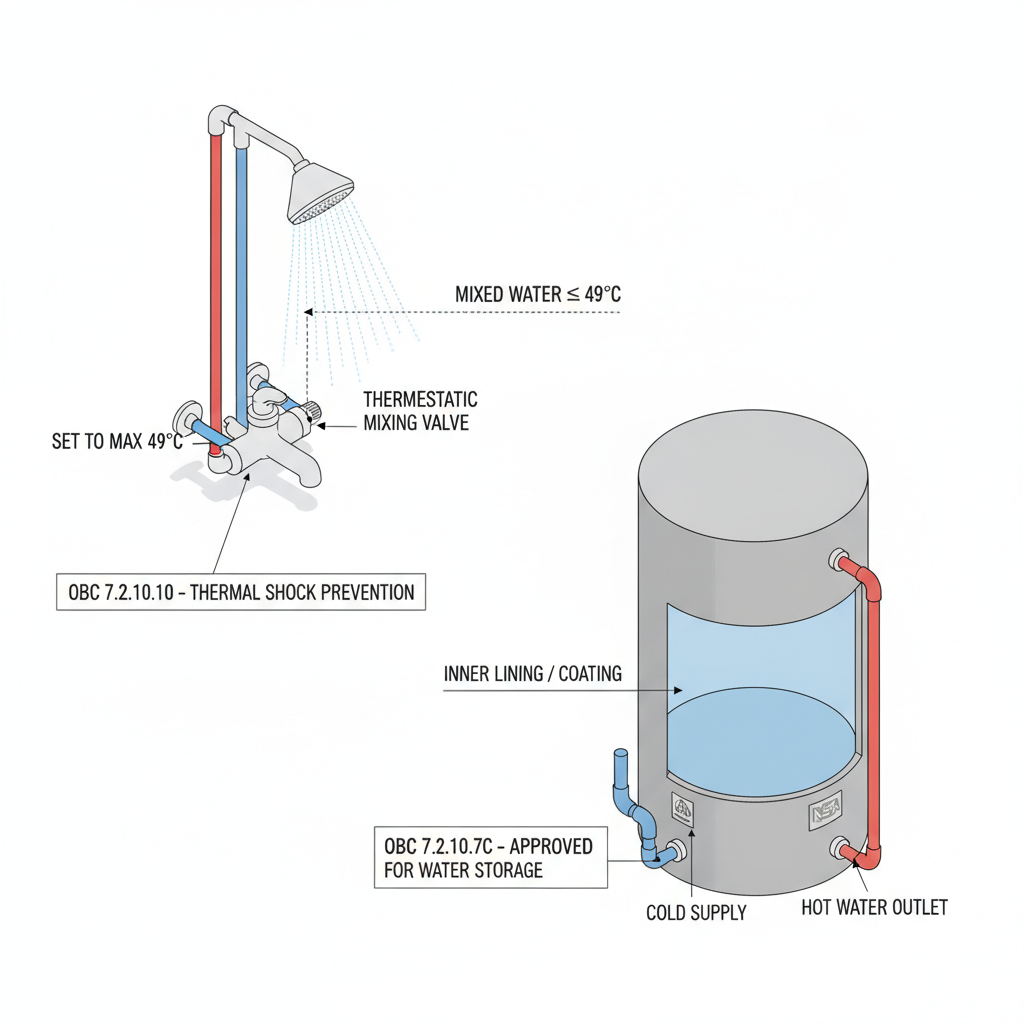

7.2.10.10. Thermal Mixing and Scald Prevention
To prevent thermal shock and scalding, the OBC requires that pressure-balanced, thermostatic-mixing, or combination valves be installed in shower and bathtub systems. These valves must limit the outlet temperature to a maximum of 49°C. This is a critical safety feature for residential units and commercial properties alike.
7.2.10.7C. Water Storage Tank Linings
Any linings or coatings used in water storage tanks that come into contact with potable water must conform to NSF/ANSI 61 standards. This ensures that the drinking water supply remains free from harmful chemical leaching, except within individual dwelling units where specific exceptions may apply.
7.2.10.8 & 7.2.10.9. Flush Valves and Drinking Fountains
Direct flush valves must operate automatically, close positively under pressure, and include a vacuum breaker to prevent back-siphonage. Similarly, drinking fountain bubblers must feature a shielded orifice that directs water at a 45-degree angle, with integrated flow regulation to maintain sanitary conditions.
7.2.10.10. Mandatory Backflow Prevention Standards
Backflow and back-siphonage preventers are the frontline of defense for Ontario's water systems. All devices must conform to the CSA B64 series standards, including:
- CSA B64.4: Reduced pressure principle (RP) backflow preventers.
- CSA B64.5: Double check valve (DCVA) systems.
- CSA B64.10: Selection and installation protocols for backflow preventers.
Adhering to these specifications is mandatory to prevent cross-contamination between potable water and non-potable sources.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
