2024 Ontario Building Code: Plumbing Fixture Pipe Sizes and Drainage Standards in London, Ontario
Sarah's Expert Insight
OBC Compliance Specialist
"Correctly calculating hydraulic loads is the difference between a high-performing home and a maintenance nightmare, especially in high-density developments in Oakville or custom Muskoka cottages. At empcontracting.ca Inc. your construction contractor in London, Ontario, we prioritize these 2024 OBC updates to ensure that even complex multi-head shower systems have the drainage capacity to perform flawlessly without risking sewer gas venting issues or slow drainage."
Understanding OBC Plumbing Requirements for Fixtures and Drainage
Navigating the 2024 Building Code Compendium is essential for any successful renovation or new build. As empcontracting.ca Inc. your construction contractor in London, Ontario, we ensure that every plumbing installation adheres to the strict hydraulic load and pipe size requirements outlined in Part 7 of the OBC.
Minimum Permitted Size of Fixture Outlet Pipes
Table 7.4.9.3. dictates the minimum nominal pipe size (NPS) and hydraulic load (fixture units) for various residential and commercial fixtures. Compliance is critical to prevent drainage backups and ensure system longevity.

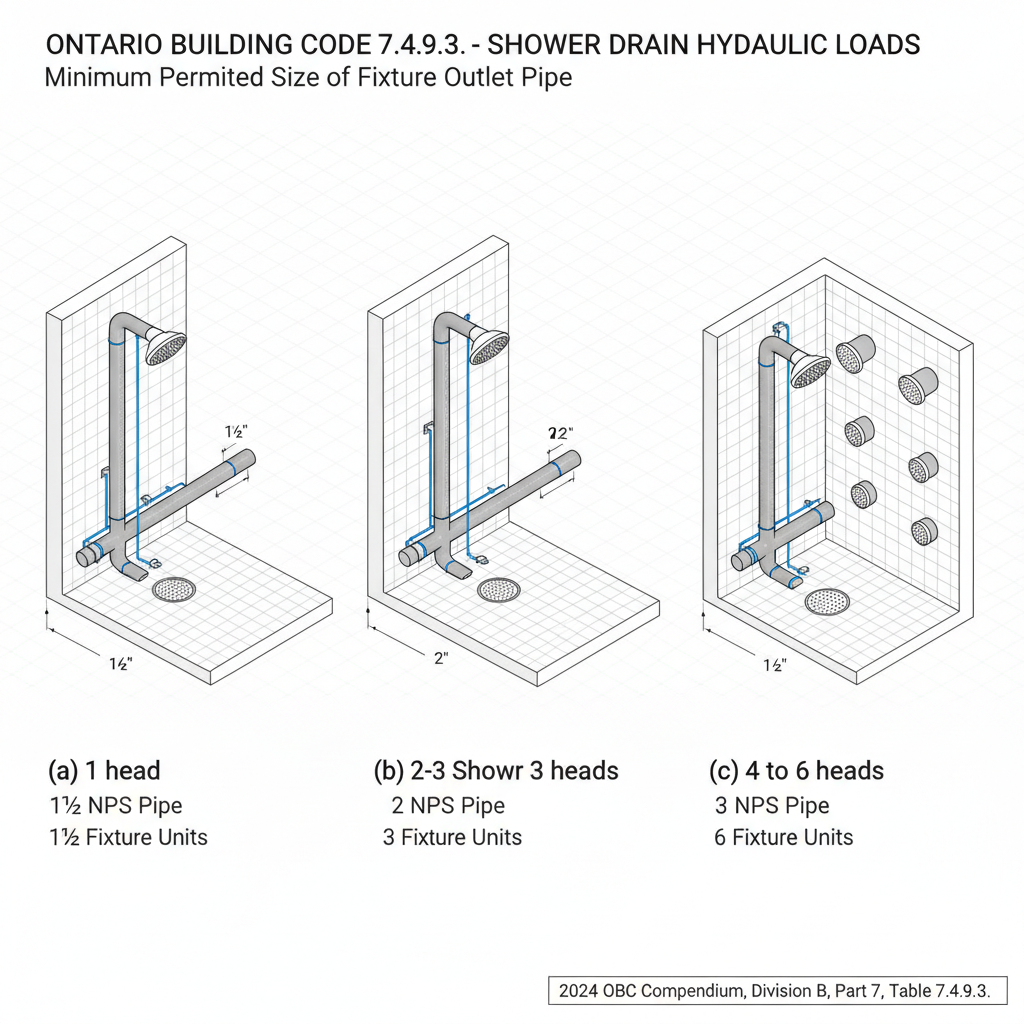

- Shower Drains: A single head requires a 1½ NPS pipe (1.5 fixture units), while larger systems with 4 to 6 heads require a 3 NPS pipe to handle a load of 6 fixture units.
- Sinks: Standard domestic sinks generally require a 1½ NPS pipe.
- Water Closets: Modern toilets with flush tanks require a minimum 3 NPS pipe with a hydraulic load of 4 fixture units.
- Urinals: Pedestal or siphon jet types require a 2 NPS pipe and represent 4 fixture units.
Building Drain and Sewer Minimums
According to Section 7.4.9.4., building drains and sewers connected to a public system downstream of the main cleanout must be at least NPS 4. This standard also applies to storm building drains, ensuring the infrastructure can handle heavy Ontario weather events.
Regulations for Leader Offsets
Section 7.4.9.5. outlines that nominal pipe sizes for leaders with horizontal offsets do not need to change if the offset is under the roof, less than 6 meters long, and maintains a slope of at least 1 in 50. Offsets exceeding 6 meters must comply with Table 7.4.10.9. to ensure proper flow dynamics.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
