Ontario Building Code 2024: Sizing Water Distribution Systems & Fixture Units (OBC 7.6.3.2)
Sarah's Expert Insight
OBC Compliance Specialist
"Correctly calculating accumulative fixture units for direct flush valves is paramount in preventing water hammer and pressure loss in high-density developments. Whether we are retrofitting commercial spaces in Oakville or managing luxury builds in Muskoka, empcontracting.ca Inc. your construction contractor in London, Ontario, leverages these OBC 2024 metrics to deliver robust and efficient plumbing systems."
Navigating the 2024 Building Code Compendium is essential for ensuring that plumbing infrastructure meets the highest standards of safety and efficiency. When planning your next project, partnering with empcontracting.ca Inc. your construction contractor in London, Ontario ensures that every hydraulic load calculation adheres strictly to Division B – Part 7 of the OBC.
Understanding OBC Table 7.6.3.2.-A: Sizing for Water Distribution
Table 7.6.3.2.-A provides the framework for sizing supply pipes based on fixture types and their intended use (Private vs. Public). This section is vital for determining the minimum nominal pipe size (NPS) and total hydraulic load in fixture units.
Key Fixture Sizing Requirements

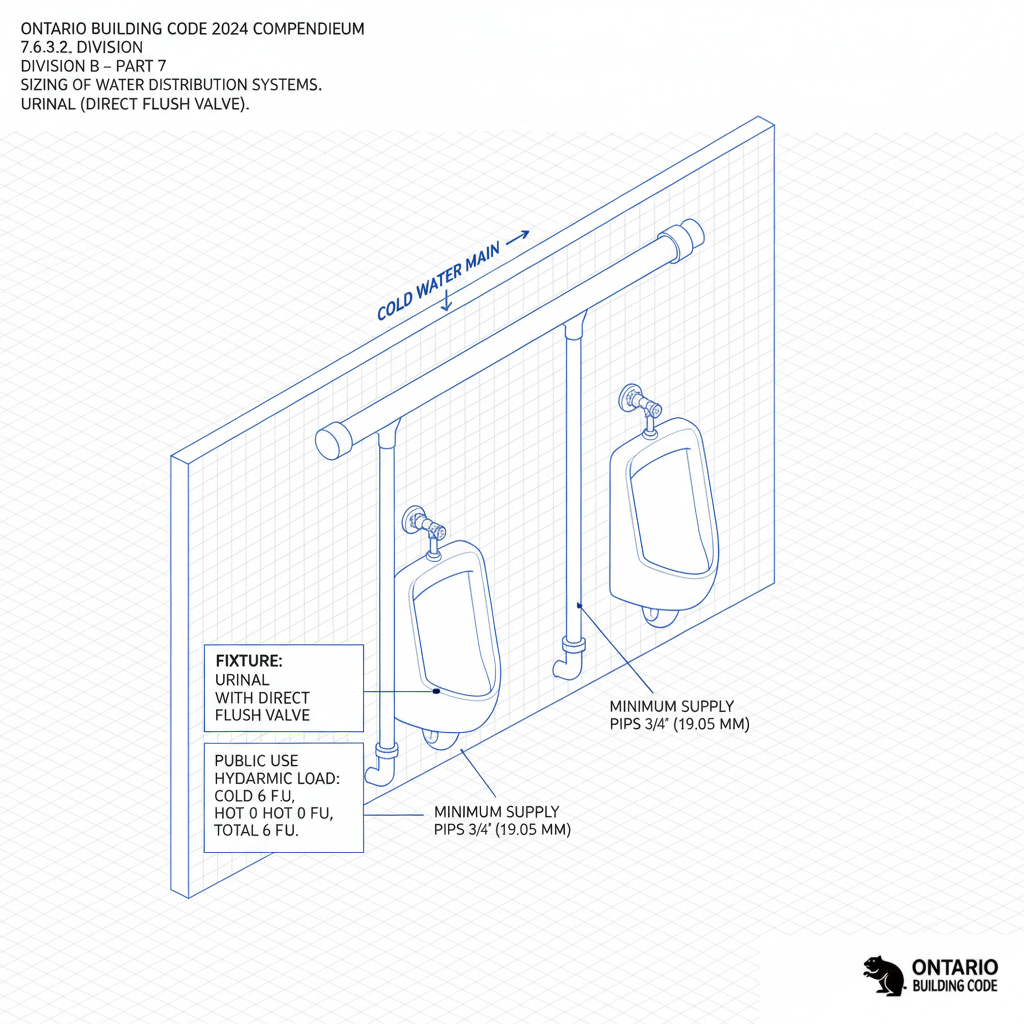

- Urinals with Direct Flush Valves: These require a minimum 3/4" NPS and involve complex accumulative load calculations.
- Water Closets (6 LPF or less): Standard high-efficiency toilets typically utilize a 3/8" NPS with a 2.2 fixture unit load for private residential applications.
- Metering Valves: Urinals with self-closing metering valves require a 1/2" NPS, emphasizing the need for precise installation to manage public-use hydraulic loads.
Accumulative Hydraulic Loads for Direct Flush Valves
According to Table 7.6.3.2.-B, the sizing of systems with multiple flush valves must account for decreasing individual values. For instance, while the first valve is assigned 20 fixture units, subsequent valves are scaled down to ensure the system is not over-engineered while still maintaining adequate pressure during peak usage. At empcontracting.ca Inc. your construction contractor in London, Ontario, we specialize in these complex commercial plumbing configurations.
Special Considerations for Assembly Occupancies
Note that fixture unit values in these tables may not apply to certain assembly occupancies due to usage surges. Specialized design information is required for these high-traffic environments to prevent system failure.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
