Navigating the 2024 Ontario Building Code (OBC) is essential for ensuring the safety and efficiency of plumbing systems. Section 7.6.3 focuses on the technical requirements for sizing water distribution systems to accommodate specific hydraulic loads.
Sizing Water Distribution Systems for Direct Flush Valves

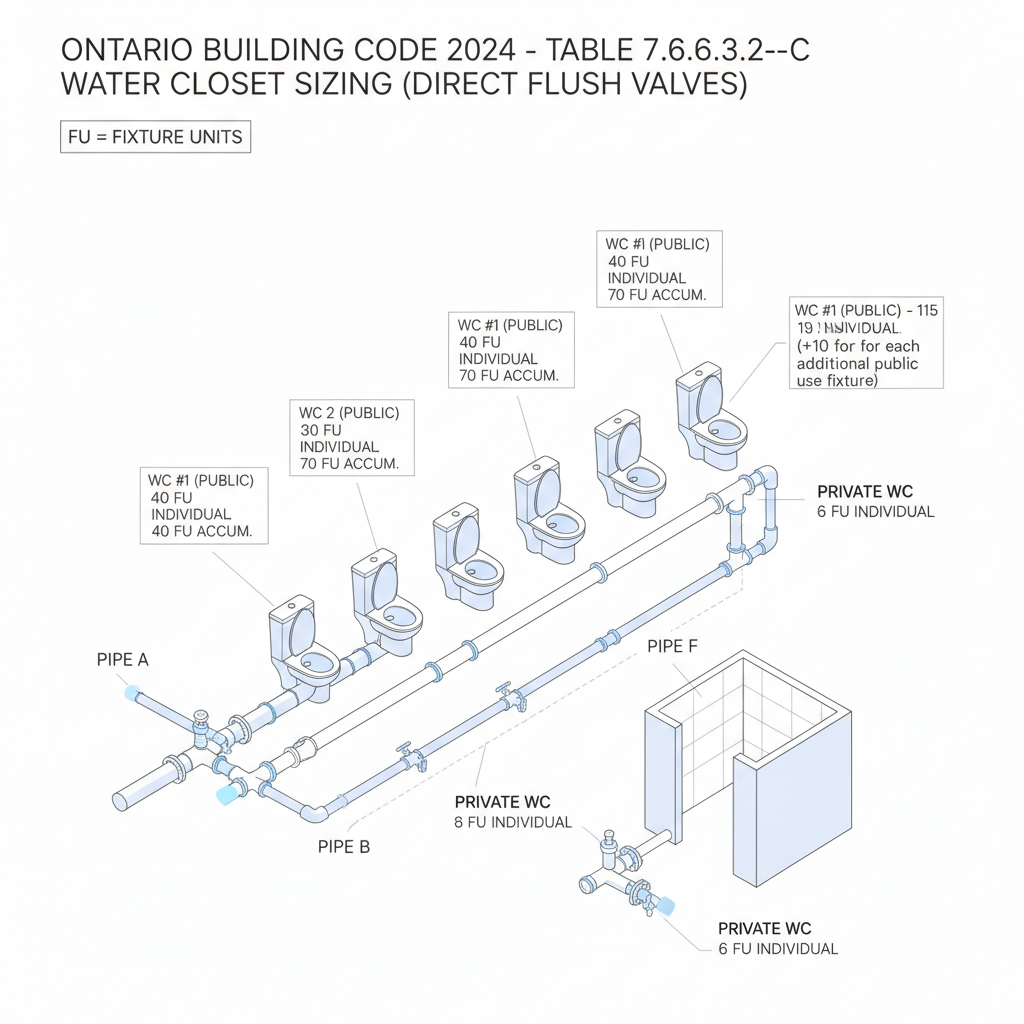

Table 7.6.3.2.-C outlines the specific fixture unit assignments for water closets equipped with direct flush valves. These systems require precise calculation due to high instantaneous demand.
Table 7.6.3.2.-C: Cumulative Fixture Unit Values
- 1 Valve: 40 Fixture Units
- 2 Valves: 70 Fixture Units
- 3 Valves: 90 Fixture Units
- 4 Valves: 105 Fixture Units
- 5 or More: 115 plus 10 per additional public fixture; 111 plus 6 per additional private fixture.
Hydraulic Loads for Unlisted Fixtures
For fixtures not explicitly listed in Table 7.6.3.2.-A, the OBC provides Table 7.6.3.2.-D to determine loads based on nominal pipe size (NPS).
Table 7.6.3.2.-D: Hydraulic Load (Fixture Units)
- NPS 3/8: Private Use: 1 | Public Use: 2
- NPS 1/2: Private Use: 2 | Public Use: 4
- NPS 3/4: Private Use: 3 | Public Use: 6
- NPS 1: Private Use: 6 | Public Use: 10
Static Pressure and Minimum Pipe Sizing Requirements
OBC 7.6.3.3. Managing Static Pressure
To protect plumbing components and prevent noise, where static pressure exceeds 550 kPa, a pressure-reducing valve must be installed to limit the pressure at the fixture to 550 kPa or less.
OBC 7.6.3.4. Minimum Pipe Size Standards
The OBC mandates that water service pipes must be sized for peak demand but shall never be less than NPS 3/4. Additionally, for fixtures allowing an NPS 3/8 supply pipe, a short connector (not exceeding 750 mm) of NPS 1/4 may be utilized. Crucially, any distribution pipe supplying a water heater for multiple fixtures must maintain a minimum size of NPS 3/4.
