2024 Ontario Building Code Guide: Class 3 Sewage System and Cesspool Construction Standards
Sarah's Expert Insight
OBC Compliance Specialist
"Class 3 systems require meticulous attention to the 900mm groundwater clearance, which is a critical factor in the high-water table areas of Muskoka and rural London. As empcontracting.ca Inc. your construction contractor in London, Ontario, we emphasize that these systems are highly specialized; failing to mound the surface properly or incorrectly calculating the loading rate can lead to significant environmental liability and system collapse."
OBC Compliance for Class 3 Sewage Systems and Cesspools
Navigating the complexities of the 2024 Ontario Building Code (OBC) is essential for any property development. When it comes to waste management, empcontracting.ca Inc. your construction contractor in London, Ontario, ensures that every installation meets the rigorous standards set out in Division B – Part 8.

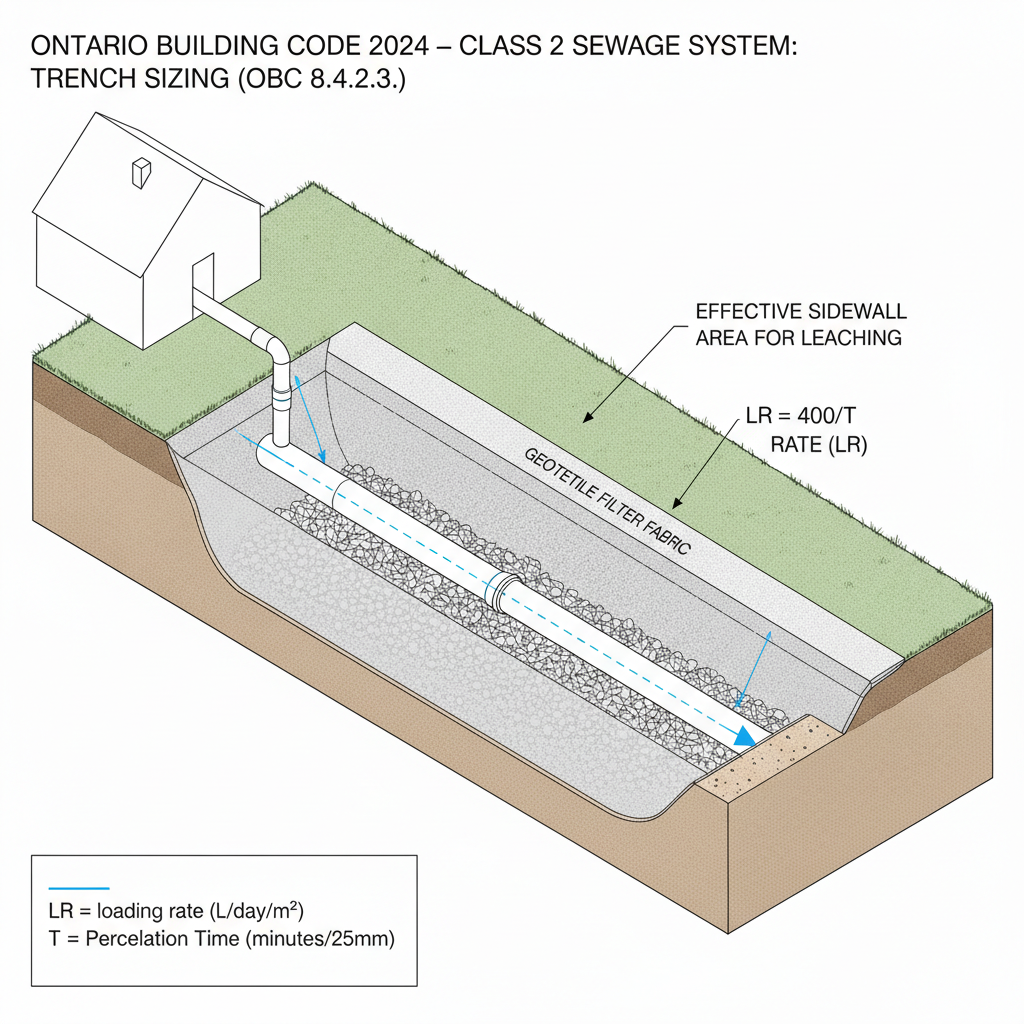

Section 8.4.2.3: Sizing and Loading Rates
For specific sewage systems, the sizing is determined by the percolation time (T). The loading rate (LR) of the sidewalls, measured in litres per day/m², is calculated using the formula LR = 400/T. This calculation is vital to ensure the soil can effectively absorb and filter the effluent without system failure.
Section 8.5.1: Scope and Application of Class 3 Systems
Class 3 sewage systems are restricted to specific use cases. According to OBC 8.5.1.2:
- The daily design sanitary sewage flow must not exceed 1,000 L/day.
- The system is designed solely to receive contents or effluent from a Class 1 sewage system (typically a privy).
Section 8.5.2: Technical Construction Requirements
To maintain structural integrity and environmental safety, the following construction mandates must be followed:
- Groundwater Separation: The bottom of the cesspool must be at least 900 mm above the high ground water table to prevent contamination.
- Structural Support: Sidewalls must be built to prevent collapse using open-jointed materials that allow for natural leaching.
- Safety and Security: Every cesspool must have a tight, strong cover. If the system extends to the ground surface, the cover must be lockable.
- Surface Grading: The perimeter must be mounded at least 150 mm above ground level and graded to divert surface drainage away from the installation.
For professional implementation of these codes, contact empcontracting.ca Inc. your construction contractor in London, Ontario.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
