2024 Ontario Building Code Requirements for Filter Beds and Leaching Bed Construction
Sarah's Expert Insight
OBC Compliance Specialist
"Navigating the specific sand gradations and side-slope ratios in Section 8.7.5 is crucial for project approval in regions like London and Muskoka, where soil conditions vary significantly. At empcontracting.ca Inc. your construction contractor in London, Ontario, we ensure these precise loading rates and setback calculations are met to prevent system failure and environmental contamination."
When planning a residential or commercial sewage system, understanding the 2024 Ontario Building Code (OBC) is essential for compliance and longevity. As empcontracting.ca Inc. your construction contractor in London, Ontario, we specialize in navigating these complex technical requirements to ensure your project meets all provincial standards.
Section 8.7.4.2: Leaching Bed Fill and Grading

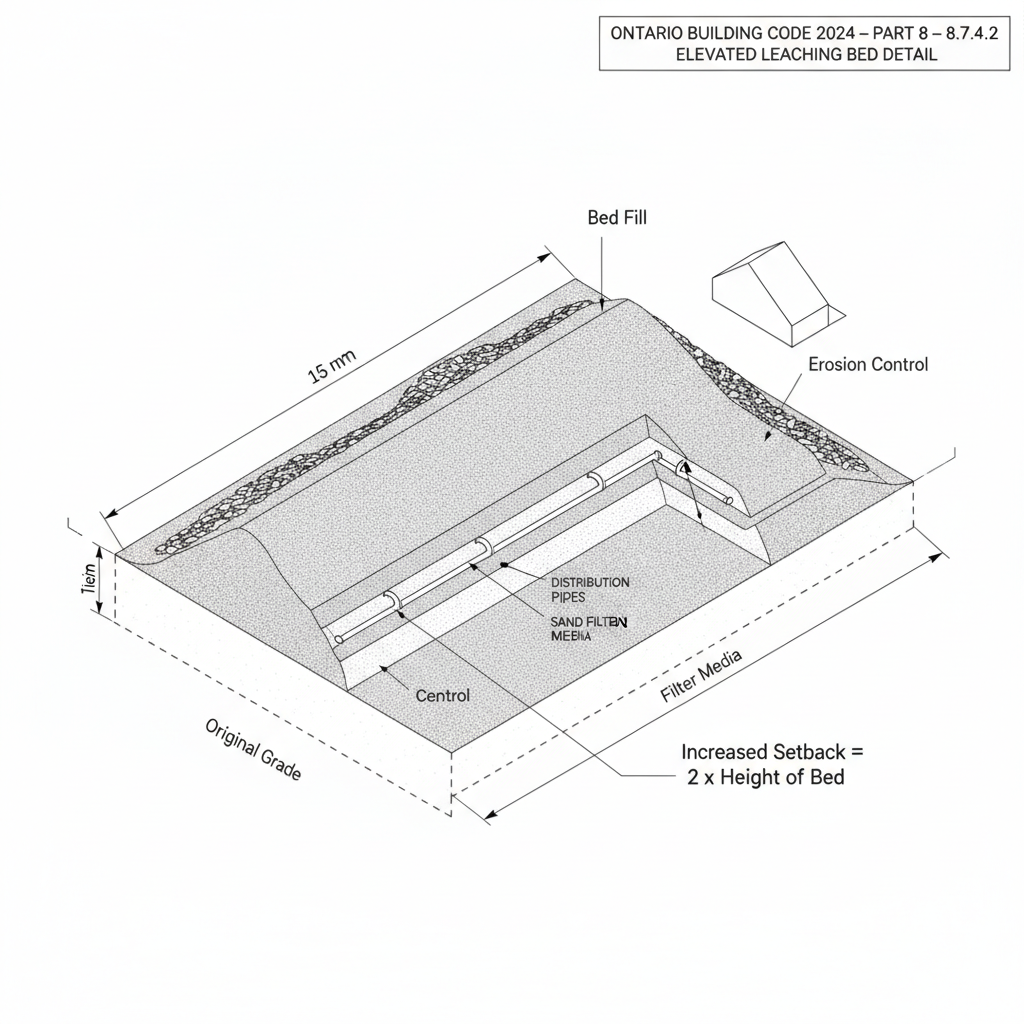

The OBC provides specific mandates for the structural integrity of leaching beds. According to Sentence (10), the side slope of the leaching bed fill can be increased up to a ratio of 1:3 (one unit vertical to three units horizontal), provided that specific erosion control and stability measures are implemented. Furthermore, if a leaching bed is raised above the original grade, the separation distances from property lines or structures must be increased by twice the height of that elevation gain.
Section 8.7.5: Filter Bed Application and Design Flow
Filter beds are subject to strict capacity limits based on the treatment unit used:
- Septic Tanks: Total daily design sanitary sewage flow must not exceed 5,000 L.
- Level II, III, or IV Treatment Units: Flow must not exceed 10,000 L.
Loading Requirements for Filter Mediums
The effective surface area of each filter bed must be between 10 m² and 50 m². Loading rates are determined by the daily flow and the type of treatment system:
- For flows under 3,000 L, the loading rate must not exceed 75 L/m² per day.
- For flows exceeding 3,000 L, the rate is reduced to 50 L/m² per day, and the system must utilize multiple filter beds of similar size.
- Systems using advanced Level II, III, or IV treatment units allow for a higher loading rate of up to 100 L/m² per day.
Construction and Sand Specifications
The OBC Section 8.7.5.3 outlines rigorous construction standards. A minimum filter medium depth of 750 mm is required below the stone layer or leaching chambers. This medium must be clean sand with precise particle size distributions, maintaining a uniformity coefficient between 3.5 and 4.5 to ensure proper filtration and drainage.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
