2024 Ontario Building Code: Guardrail Height and Opening Standards for London Contractors
Sarah's Expert Insight
OBC Compliance Specialist
"At empcontracting.ca Inc. your construction contractor in London, Ontario, we often find that homeowners in Oakville and Muskoka are surprised by the 1500mm height requirement for high-elevation decks, which is vital for wind resistance and safety on steep terrains. It is essential to remember that the 100mm opening rule is strictly enforced during municipal inspections to ensure child safety, and we never compromise on this measurement regardless of the design aesthetic."
Understanding the nuances of the 2024 Ontario Building Code (OBC) is critical for any renovation or new build. As empcontracting.ca Inc. your construction contractor in London, Ontario, we prioritize safety and compliance in every project we oversee.

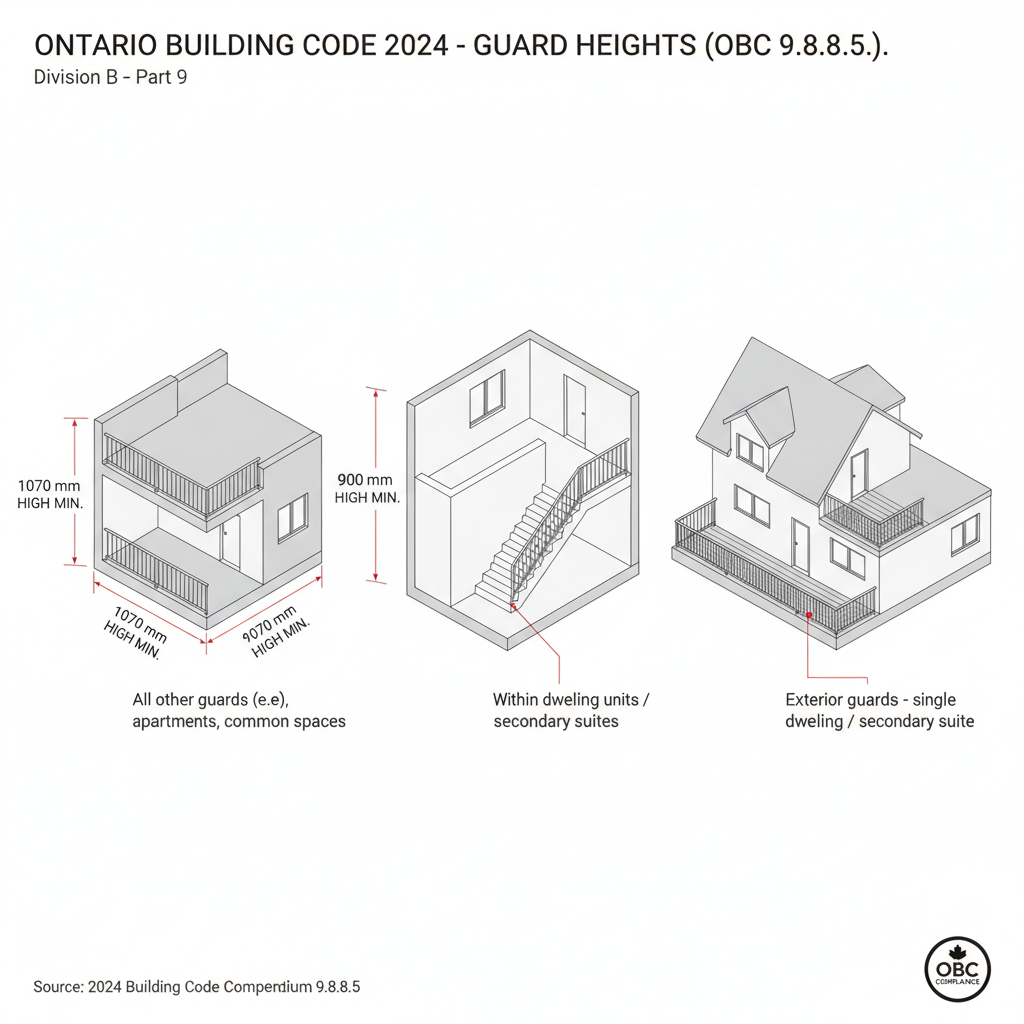

9.8.8.3. Height of Guards
The OBC establishes clear benchmarks for guard heights to prevent falls, varying by location and elevation:
Standard and Residential Heights
- General Minimum: Most guards must be at least 1070 mm high.
- Residential Interiors: Guards within dwelling units or houses with secondary suites can be reduced to 900 mm in height.
- Low-Level Exterior Decks: For exterior guards serving a single dwelling, a 900 mm height is acceptable if the walking surface is less than 1800 mm above the finished ground.
High-Elevation Requirements
For exterior stairs and landings situated more than 10 m above the adjacent ground level, the safety height is increased to a minimum of 1500 mm.
9.8.8.4. Guards for Garage Floors and Ramps
In garage settings where floors or ramps sit 600 mm or more above the adjacent grade, specific protections are required:
- A continuous curb at least 140 mm high.
- A guard with a minimum height of 1070 mm.
- Vehicle guardrails must be engineered to withstand specific loading values as per Part 4 of the OBC.
9.8.8.5. Openings in Guards and Safety Clearances
To ensure the safety of children, the code restricts the size of openings in guards:
The 100 mm Rule
In most residential and commercial settings, openings must be small enough to prevent the passage of a 100 mm diameter sphere.
Stair and Industrial Exceptions
- Stair Triangles: The triangular space formed by the riser, tread, and bottom guard rail can allow up to a 150 mm diameter sphere.
- Industrial Occupancies: These guards can have larger openings (up to 535 mm) provided they utilize horizontal intermediate rails.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
