Navigating the complexities of the 2024 Ontario Building Code (OBC) is essential for ensuring the safety and compliance of residential and commercial structures. Section 9.10.9.7 and 9.10.9.8 outline the rigorous standards required when service equipment, such as plumbing and electrical boxes, penetrates fire-rated assemblies.

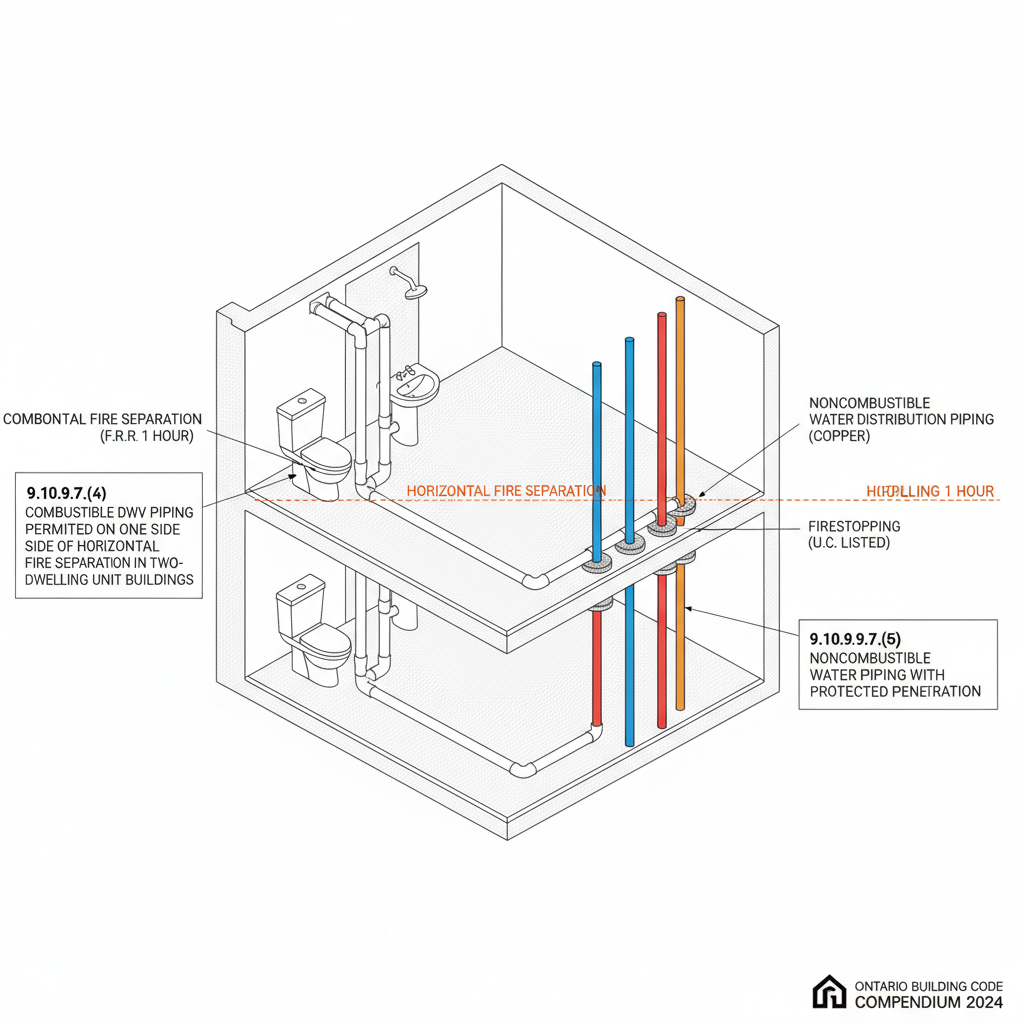

Piping Penetrations in Fire Separations (OBC 9.10.9.7)
In buildings containing only two dwelling units, the code allows for combustible drain, waste, and vent piping on a single side of a horizontal fire separation. However, water distribution piping must meet strict criteria:
- Noncombustible Piping: Must be protected in accordance with Sentence 9.10.9.6.(1).
- Combustible Piping: Permitted if not located in a vertical shaft and sealed by a firestop conforming to Clause 9.10.9.6.(1)(a).
Outlet Boxes and Service Equipment (OBC 9.10.9.8)
General Requirements for Penetrations
Electrical outlet boxes penetrating a fire-resistance-rated assembly must generally be sealed with a firestop that meets the CAN/ULC-S115 standard. This ensures the FT rating is not less than the rating of the fire separation itself.
Exceptions for Noncombustible Boxes
Noncombustible boxes may not require a specific firestop if they meet the following size and density restrictions:
- Individual area does not exceed 0.016 m².
- Aggregate area does not exceed 0.065 m² in any 9.3 m² of surface area.
- The gap (annular space) between the membrane and the box is 3 mm or less.
Regulations for Combustible Outlet Boxes
Combustible boxes must be handled with care. They are permitted only if they are enclosed within fire block material or encapsulated by mineral fibre insulation (rock or slag) that has a mass per unit area of at least 1.22 kg/m². Furthermore, these boxes must be separated by at least 600 mm when located on opposite sides of a vertical fire separation.
