Navigating the 2024 Ontario Building Code (OBC) is essential for ensuring the safety and compliance of residential and commercial structures. Sections 9.10.10.4 through 9.10.10.7 outline critical requirements for fire separations in service rooms, specifically regarding fuel-fired appliances, incinerators, storage areas, and emergency power systems.

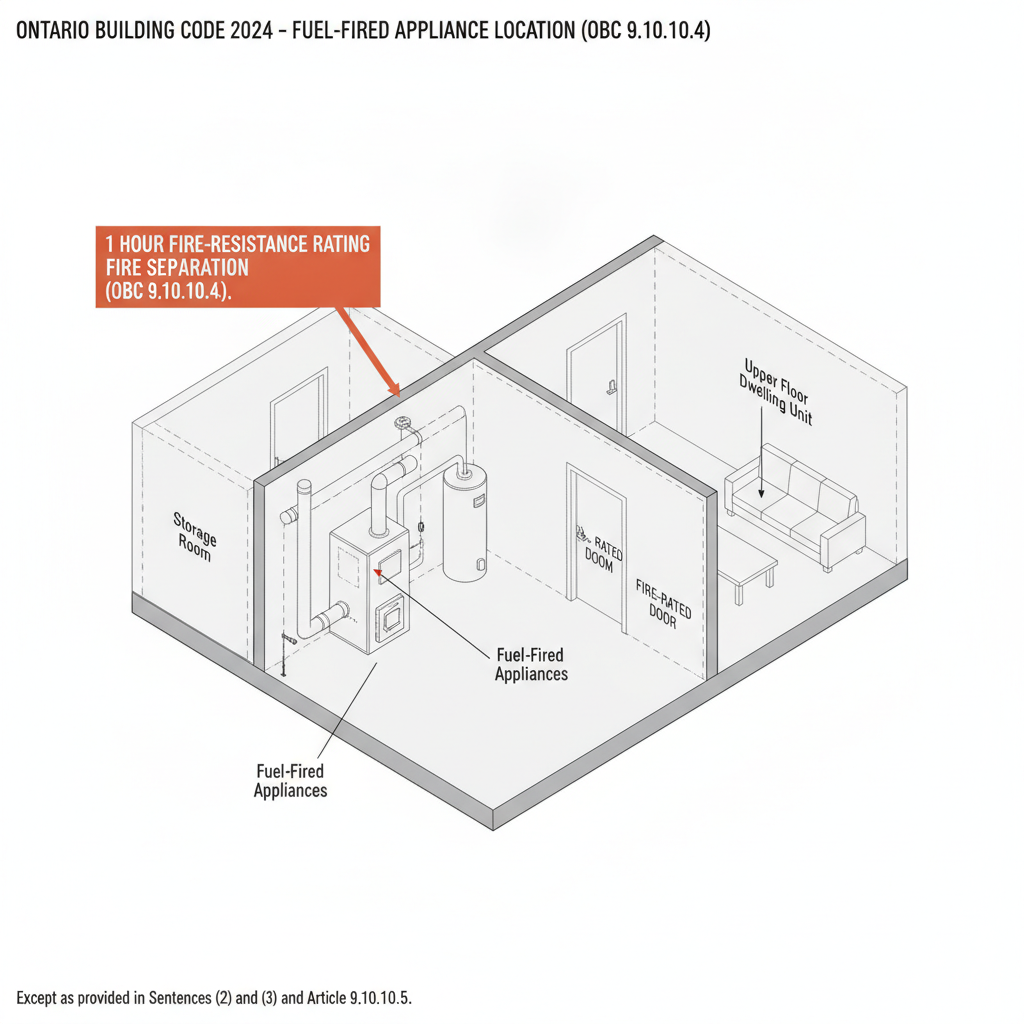

9.10.10.4. Fire Separations for Fuel-Fired Appliances
As a standard rule, fuel-fired appliances must be housed in a service room separated from the rest of the building by a fire separation with at least a 1-hour fire-resistance rating. However, there are notable exceptions for smaller builds and specific residential configurations.
Exceptions for Smaller Buildings and Secondary Suites
Separation is not required if the appliance serves only one room/suite or a building under 400 m² and two storeys in height. Notably, for houses with secondary suites, appliances can be located in a service room protected by a continuous smoke-tight barrier of at least 15.9 mm thick Type X gypsum board on all walls and floor-ceiling framing.
9.10.10.5. Standards for Incinerators
Incinerators require a higher safety threshold. Service rooms containing these units must have a fire-resistance rating of at least 2 hours. Design and installation must conform to NFPA 82 standards, and incinerators must never be located in the same room as other fuel-fired appliances.
9.10.10.6. Combustible Refuse and Public Storage Rooms
Rooms used for the temporary storage of combustible materials or recycling must be separated by a 1-hour fire-resistance rating. This may be reduced to 45 minutes if the floor assembly permits or if the room is equipped with an automatic sprinkler system.
9.10.10.7. Emergency Power Installation Requirements
Emergency generators supplying power for lighting and life safety systems must be isolated in a dedicated room. The fire-resistance rating for these rooms is determined by the floor assembly's rating: 1 hour if the floor requires 1 hour, and 2 hours if the floor assembly requires more than 1 hour. This room must only contain equipment related to the emergency power supply.
For expert assistance with your next project, trust empcontracting.ca Inc. your construction contractor in London, Ontario to ensure every detail meets current OBC standards.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
