Ontario Building Code 9.14.4 & 9.14.5: Foundation Drainage and Sump Pit Standards for Ontario Construction
Sarah's Expert Insight
OBC Compliance Specialist
"In the clay-heavy soils common in London and the high-water tables of Muskoka, adhering to the 125mm granular depth is non-negotiable to prevent hydrostatic pressure from damaging the foundation. At empcontracting.ca Inc. your construction contractor in London, Ontario, we emphasize that the airtight sump cover requirement is not just about drainage—it is a vital component of the home's air barrier and radon mitigation strategy."
Understanding foundation drainage is critical for structural integrity and moisture control in residential builds. At empcontracting.ca Inc. your construction contractor in London, Ontario, we prioritize these 2024 Building Code Compendium standards to ensure every basement remains dry and safe.
Section 9.14.4: Granular Drainage Layer Specifications

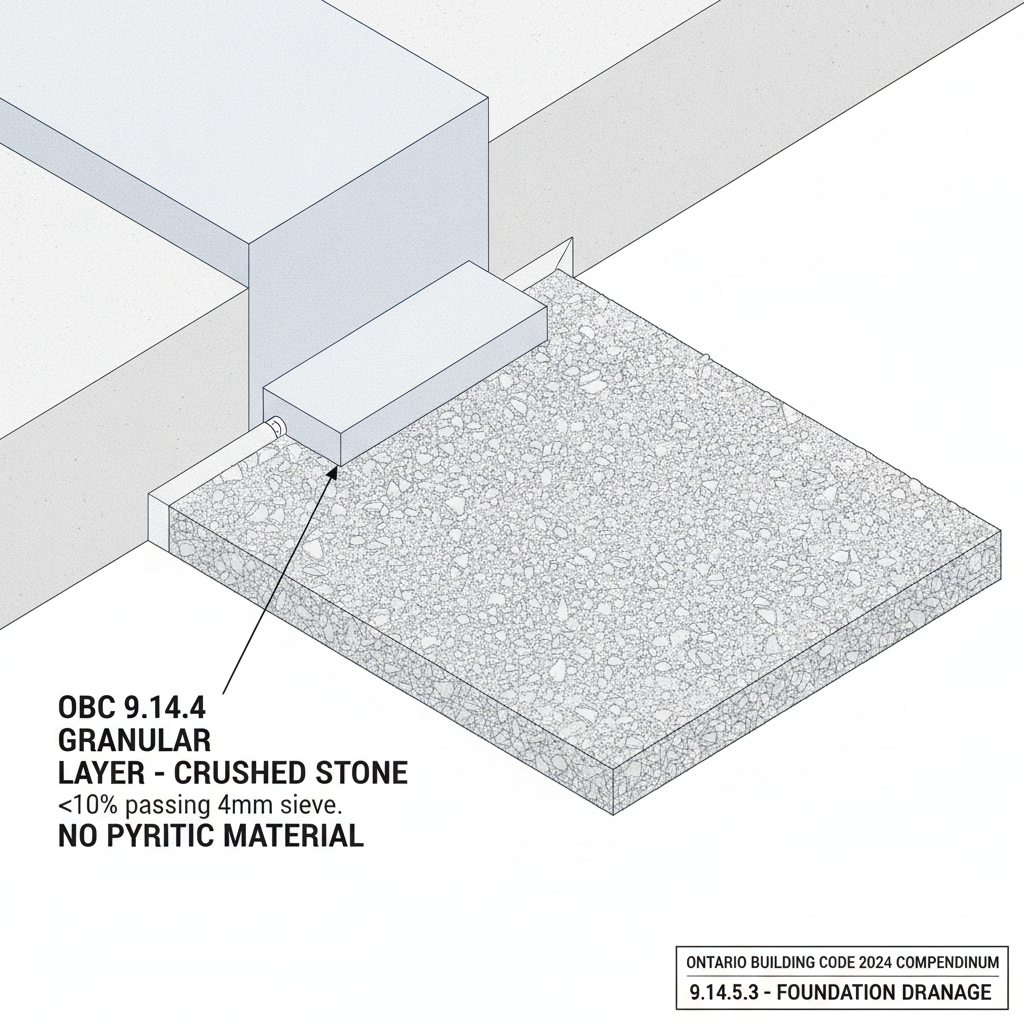

9.14.4.1. & 9.14.4.2. Material and Installation Standards
To drain the bottom of a foundation effectively, a continuous layer of crushed stone or coarse clean granular material must be used. This material must contain no more than 10% fines (material passing a 4 mm sieve) and must be free of pyritic material. The layer must be at least 125 mm deep beneath the footing and extend 300 mm beyond the outside edge.
9.14.4.3. & 9.14.4.4. Grading and Wet Site Conditions
The excavation bottom must be graded so the entire granular layer drains toward the sump pit. If wet site conditions cause soil to mix with the granular material, additional stone must be added to ensure the top 125 mm remains completely free of soil contaminants.
Section 9.14.5: Drainage Disposal and Sump Requirements
9.14.5.1. & 9.14.5.2. Sump Pit Design and Safety
Foundation drains must discharge into a sewer, ditch, or dry well. Sump pits must be at least 750 mm deep and 0.25 m² in area. A critical safety and performance requirement is the sump cover: it must be designed to resist removal by children and be airtight to prevent air leakage and soil gas infiltration.
9.14.5.3. Dry Well Restrictions
Dry wells are only permitted in specific geological conditions where the natural groundwater level is confirmed to be below the bottom of the well, preventing backflow into the foundation system.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
