OBC Section 9.23.9 Guide: Joist Restraint, Bridging, and Header Requirements for Ontario Wood Framing
Sarah's Expert Insight
OBC Compliance Specialist
"As a senior consultant at empcontracting.ca Inc., I frequently see builders overlook the 12mm shrinkage gap required by OBC 9.23.9.2, which is a leading cause of floor squeaks in new builds across London and Oakville. Properly executed bridging and header doubling are not just code requirements; they are essential for the high-end finishes and open-concept designs common in Muskoka cottage renovations where structural spans are often maximized."
Understanding the nuances of the 2024 Ontario Building Code (OBC) is vital for structural integrity. At empcontracting.ca Inc. your construction contractor in London, Ontario, we prioritize these framing standards to ensure every floor system we build is silent, level, and durable.

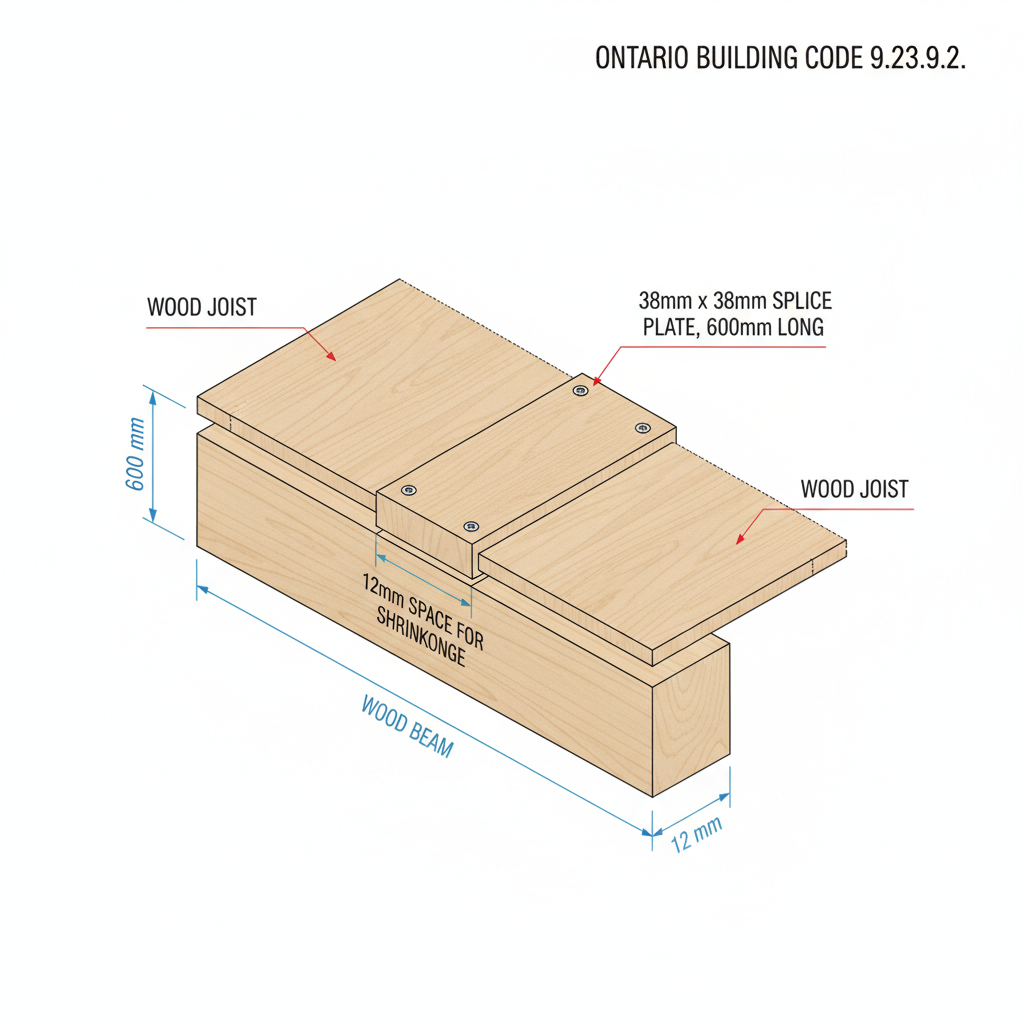

Joist Splicing and Shrinkage Allowance (9.23.9.2)
According to Section 9.23.9.2, joists spliced above a beam require specific reinforcement. They must be joined with lumber at least 38 mm x 38 mm and 600 mm in length. Most importantly, a 12 mm gap must be provided between the splice and the beam to accommodate the natural shrinkage of wood joists, preventing future floor heaving or structural tension.
Restraint of Joist Bottoms (9.23.9.3)
To maintain vertical alignment and prevent rotational failure, the bottoms of floor joists must be restrained at each end. Acceptable methods under the OBC include:
- Toe-nailing to supports or end-nailing to header joists.
- Installation of continuous strapping.
- Utilizing solid blocking or cross-bridging near the supports.
Strapping, Bridging, and Furring Specifications (9.23.9.4)
The OBC provides strict dimensions for lateral support systems to ensure load distribution:
Standard Strapping and Bridging
Strapping must be at least 19 mm x 64 mm and located no more than 2100 mm from each support. Bridging should consist of 19 mm x 64 mm or 38 mm x 38 mm cross-bridging, or 38 mm solid blocking. These components work together to minimize floor vibration.
Exceptions and Ceiling Finishes
Strapping is often unnecessary when furring strips or panel-type ceilings (such as gypsum board or plywood) are fastened directly to the joists, as these finishes provide the required lateral restraint.
Header Joists and Floor Openings (9.23.9.5)
Reinforcement around floor openings is critical for safety. Header joists must be doubled when they exceed 1.2 m in length. For significant spans exceeding 3.2 m, the OBC requires that header joist sizes be determined by specific engineering calculations to ensure they can handle the tributary loads.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
