OBC 2024 Section 9.32.3.11: Professional Guide to Ventilation Duct Sizing and Static Pressure
Sarah's Expert Insight
OBC Compliance Specialist
"Correctly applying the 2024 OBC duct sizing tables is essential for preventing premature fan failure and ensuring moisture control in high-end builds across London, Oakville, and Muskoka. As empcontracting.ca Inc. your construction contractor in London, Ontario, we emphasize the 'double-length' rule for flexible ducts to guarantee that our ventilation systems exceed minimum performance standards for long-term home health."
Understanding Ontario Building Code Section 9.32.3.11
The 2024 Building Code Compendium, Division B, Part 9, outlines specific requirements for residential ventilation systems. Section 9.32.3.11 focuses on the critical relationship between fan external static pressure, duct diameter, and maximum airflow rates to ensure optimal air quality and system efficiency.
Defining Fan External Static Pressure
As per sentence (e), "fan's external static pressure" refers to the pressure at which a fan is rated to achieve its maximum intended airflow rate. This measurement is fundamental in determining the correct ducting size for any residential project in Ontario.

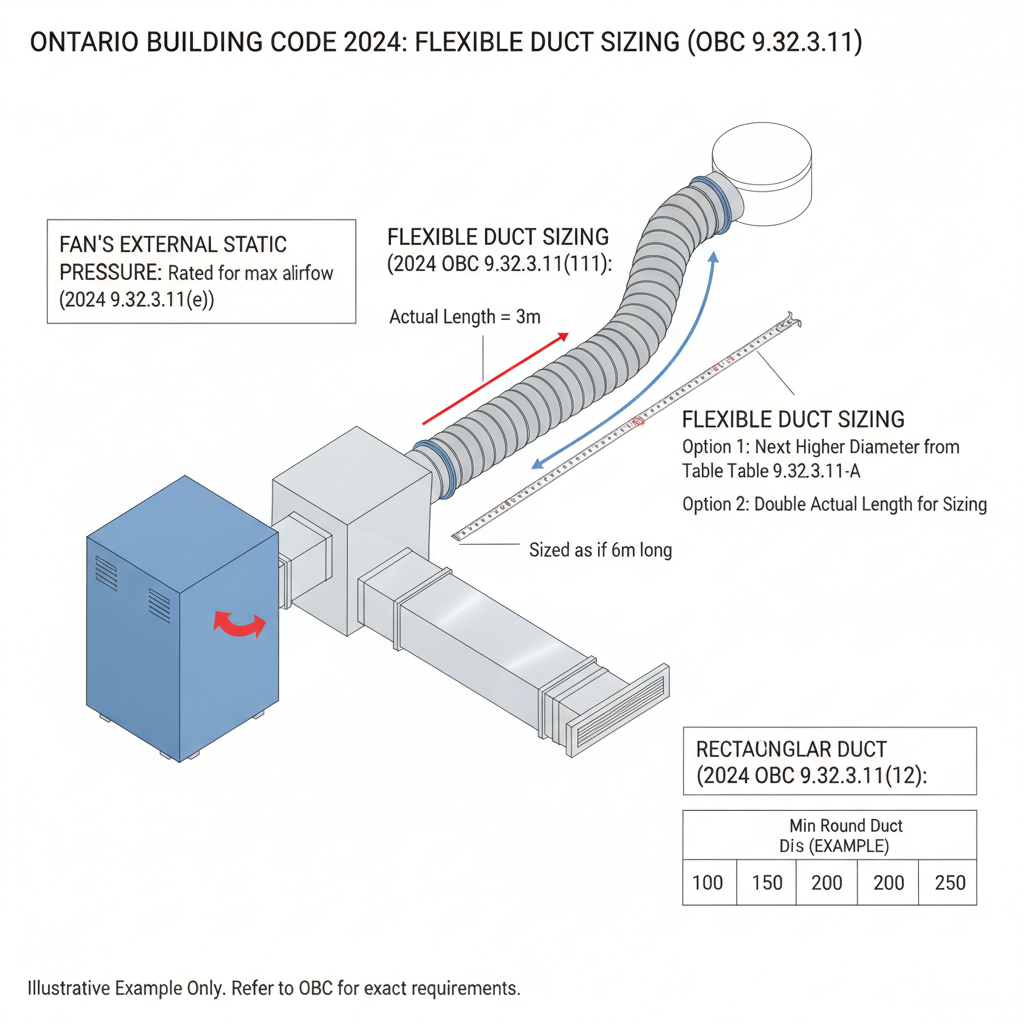

Requirements for Flexible and Rectangular Ductwork
The code provides specific instructions for non-standard ducting materials to account for friction loss:
- Flexible Ducting: Under subsection (11), if flexible duct is utilized, it must be sized by either choosing the next higher diameter in Table 9.32.3.11.-A or by sizing the duct as if it were twice its actual length.
- Rectangular Ducting: Subsection (12) mandates that rectangular ducts must be selected according to the equivalencies found in Table 9.32.3.11.-B.
Equivalent Duct Sizes: Table 9.32.3.11.-A Analysis
Table 9.32.3.11.-A provides the maximum allowable length of duct (in meters) based on various factors:
- Static Pressure (Pa): Ranging from 75 Pa to 150 Pa.
- Duct Diameter (mm): Ranging from 75mm to 200mm.
- Airflow Rates (L/s): Coverage for 7, 15, 25, 35, 50, 75, and 100 L/s.
For example, at 50 Pa of static pressure, a 150mm duct can support a maximum airflow of 50 L/s for up to 12 meters, whereas a 200mm duct at the same pressure can support 100 L/s for 13 meters.
Disclaimer: This content is generated from the Ontario Building Code for educational purposes. Always consult with a licensed professional engineer or your local building department before starting any construction project in London, Ontario.
